Chapter 2 Installing the Encoder Connecting the Power
© 2015 Harmonic Inc. All rights reserved. 18 Electra 9200, Rev O
n +Vin
Although Harmonic provides the power input connector with the Electra-9200D, you must
supply the wires.
The wires must comply with the specifications shown in Table 2–2.
Power Connector
The encoder is supplied with a special DC power connector plug that matches the DC power
socket on the back of the encoder.
This connector is made by WAGO, model number 231-103/037-000.
Use only the original connector for connecting the encoder to the DC power source. Contact
Harmonic Technical Support (Appendix D, Contacting the Technical Assistance Center) if you want to
use any other type of connector.
Figure 2–7 shows the connector and its strain relief housing.

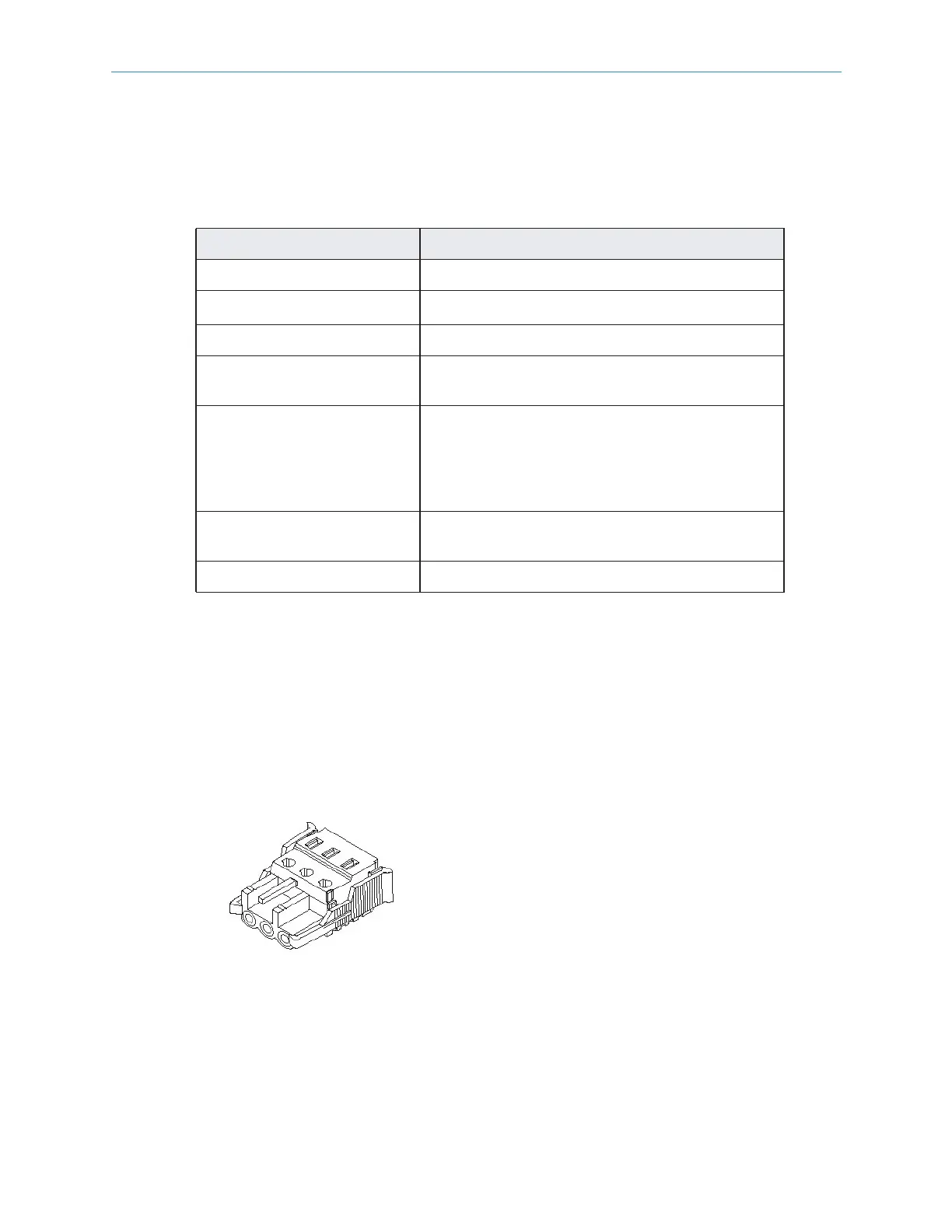

Figure 2–7: DC power connector
Assembling the DC Input Power Cable
To assemble the DC input power cable:
1. Prepare the power wires as specified in Wiring Requirements.
2. Use the disconnect device to make sure that the power supply from the DC power
source to the cables is switched off.
Table 2–2: DC Power Wire Requirements
Parameter Specification
Suitable conductor material Copper only
–Vin and +Vin wires
16 AWG rating
Ground cable 16 AWG rating
Cable insulation rating Minimum 80 C, low smoke fume (LSF), flame
retardant
Cable type Must comply with at least one of the following
st andards:
n UL 1581 (VW-1) - UL style 1028 or equivalent
n EEE 383
n EEE 1202-1991
Branch circuit c able
insulation color
Per applicable national electrical codes
Grounding cable color Green-yellow
