Chapter 7 FLEX Decoding Module Cabling the FLEX-1 Module
© 2015 Harmonic Inc. All rights reserved. 62 Electra 9200, Rev O
n Two Channel FLEX System
n Four Channel FLEX System
Rev OCabling the FLEX-1 Module is very straight forward. All ports are clearly marked. The
examples include tables that list the ports and required connectors.
NOTE: For the monitor ports there is a DIN to BNC pigtail connector that can be ordered. Harmonic
Part number: FLEX-MON, 229-0054067.

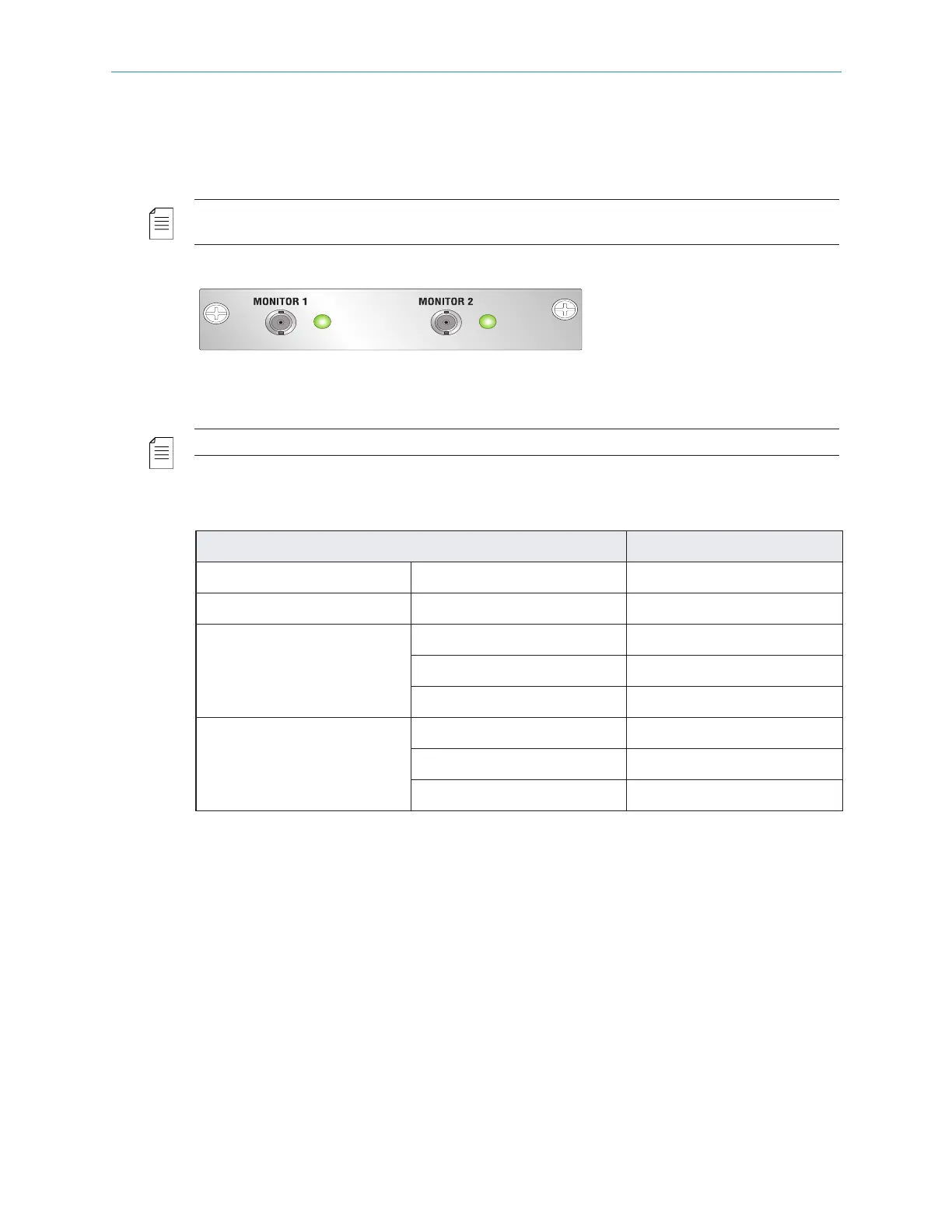

Figure 7–1: FLEX-1 Module Ports
NOTE: Monitor ports can be used for confidence monitoring.
Table 7–1 shows the encoder’s LED color values.
Table 7–1: LED Color Chart
Description Color
No Output Off
Error Red
60Hz Formats
480i Green
720p White
1080i Blue
50Hz Formats
576i Yellow
720p Magent a
108i Cyan
(RN-21)
