Harris Constellation - Figure 7-8: Typical Threshold-To-Interference (T;I) Curve (6, 7;8, 10;11 Ghz, 4 DS3)

Harris Corporation Constellation®
Threshold-to-Interference (T/I) Ratios 7-11
PERFORMANCE
CURVES

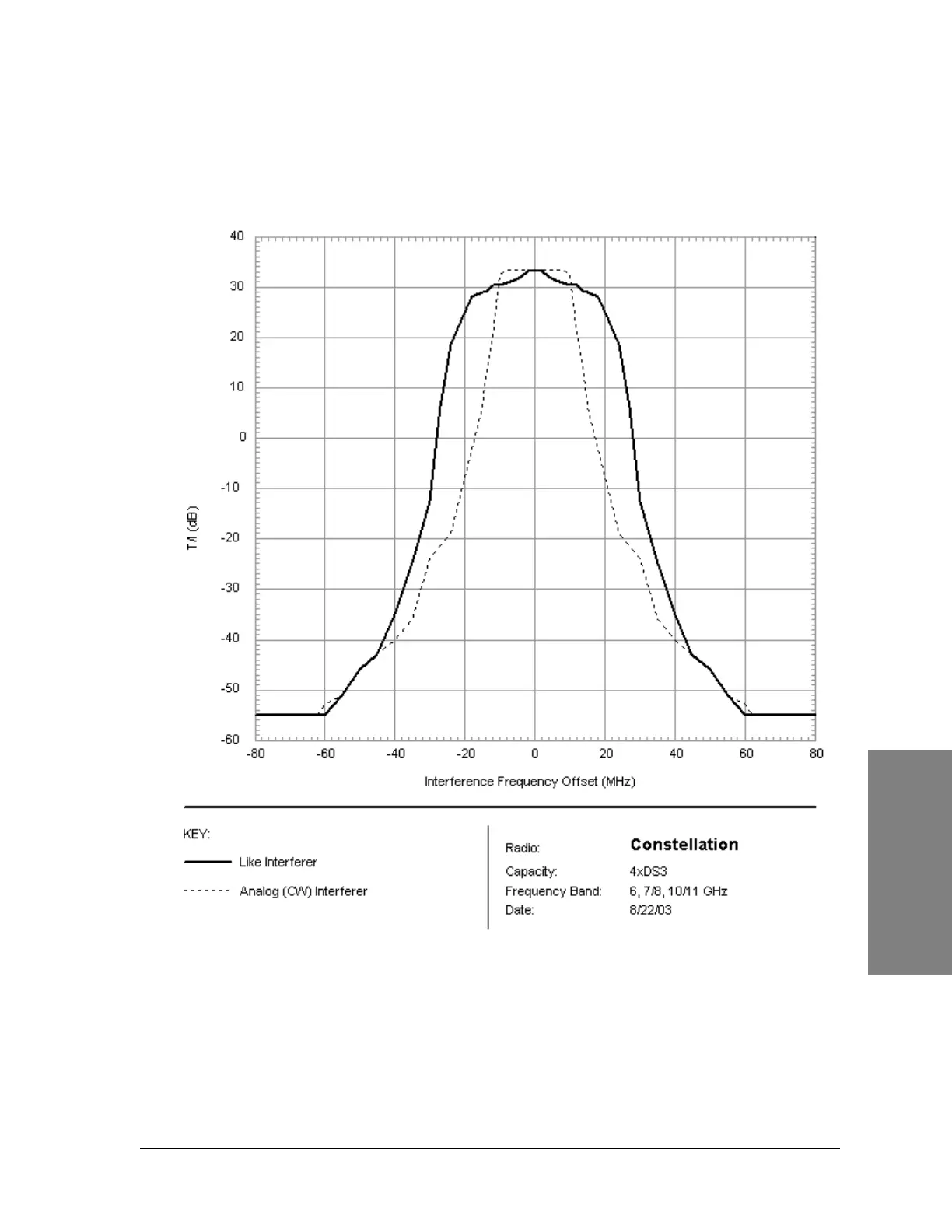

Figure 7-8: Typical threshold-to-interference (T/I) curve (6,
7/8, 10/11 GHz, 4DS3)
