7-6 Performance Curves

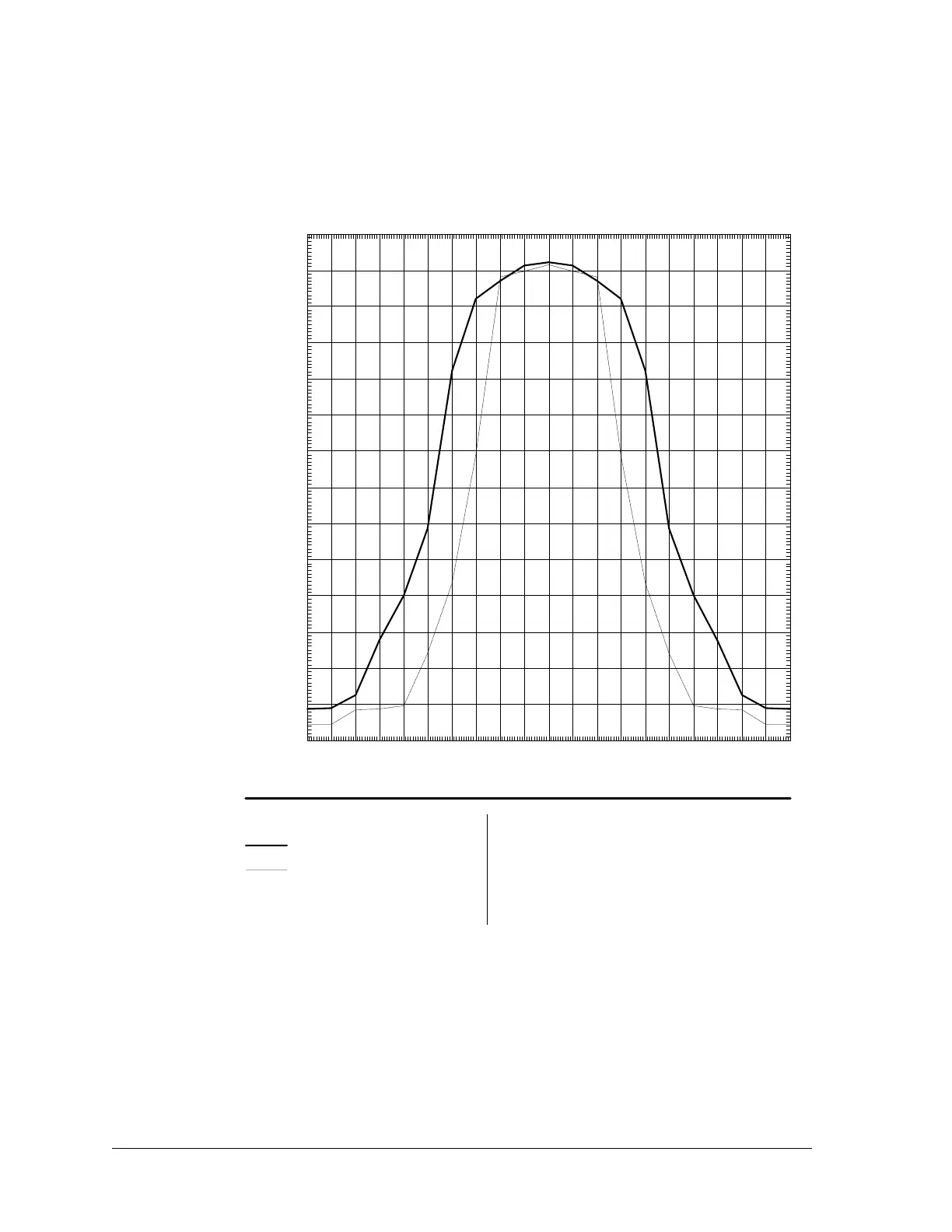

Figure 7-3: Typical threshold-to-interference (T/I) curve (6
GHz and 7/8 GHz, 16 DS1)
-10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10
-35
-30
-25
-20
-15
-10
-5
0
5
10
15
20
25
30
Radio:
Capacity:
Frequency Band:
16 DS1
5850 - 8500 MHz
KEY:
Constellation
T/I (dB)
Interference Frequency Offset (MHz)
Date: 8/7/2000
Like Interferer
Analog (CW) Interferer
