6-10 888-2587-001 4/18/11
WARNING: Disconnect primary power prior to servicing.
FM HD Radio System
Section 6 Troubleshooting
settings so that they can be adjusted. The state of this lock is given next to the title
“CONFIGURE & SETTINGS” (LOCK) or (UNLOCK).
UNLOCKING, AND THEN MODIFYING THESE CONFIGURATION SETTINGS
INCORRECTLY COULD CAUSE DAMAGE TO THE BOOST PRO AND/OR ANY
DOWNSTREAM EQUIPMENT (TRANSMITTERS, COMBINERS, REJECT
LOADS, ANTENNAS, ETC.).
FAULTS:
The faults listed on the right side of the screen are self explanatory with the exception of
A-BIT fail and D-BIT fail. A-BIT fail refers to an analog built-in-test that has failed.
This is something that will not come up in normal operation and will not be a concern.
D-BIT fail refers to a digital built-in-test and the same logic applies.

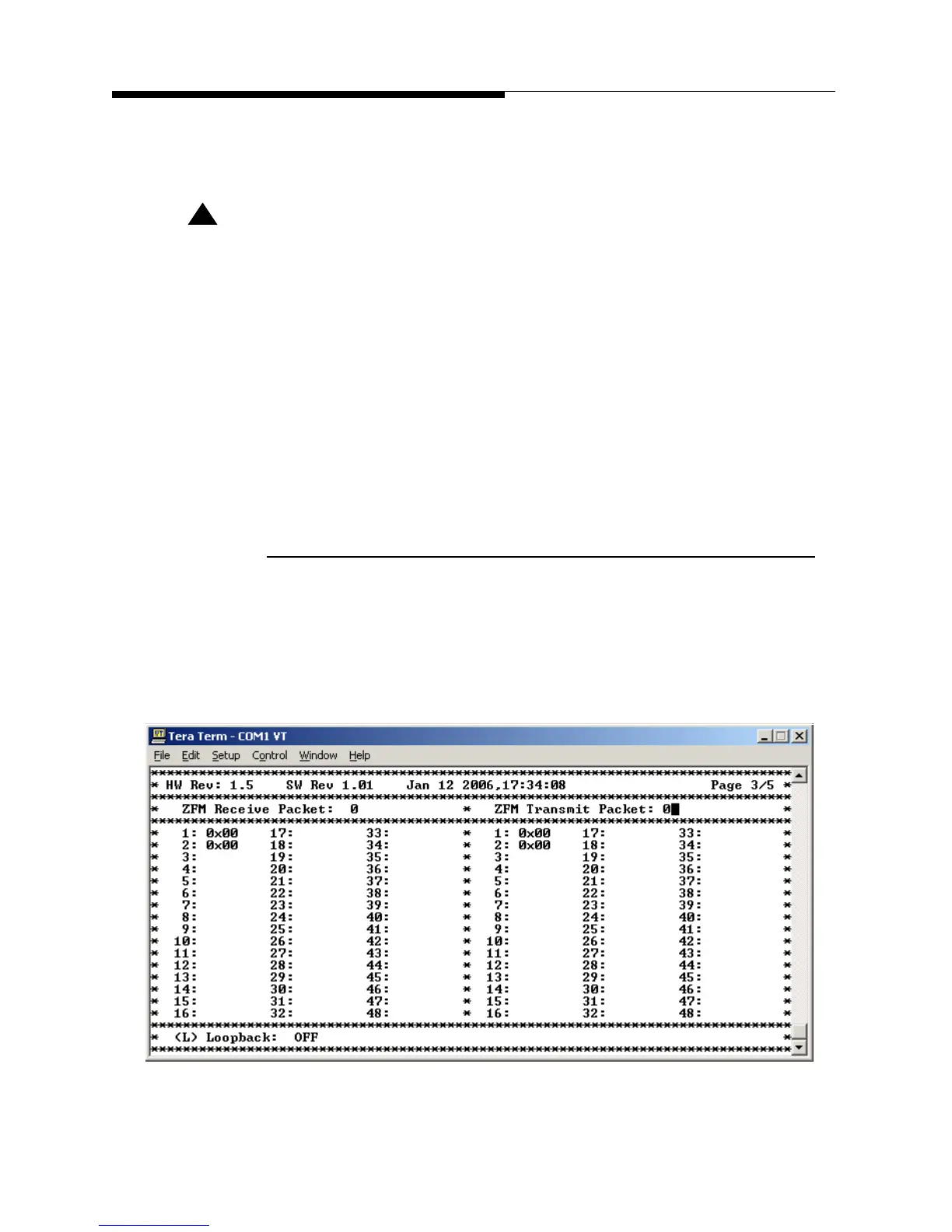

6.4.4 VT100 - Page 3
Z Serial information:
Commands:
(l) Loopback: Typing l will initiate a serial communication test.
Figure 6-3 VT100 - Page 3
