18 HFS6801+ Installation and Operation Manual
Chapter 2: Installation
6. From the Tools menu, select Software Upgrade.
The Software Upgrade window opens or is brought to the
foreground.

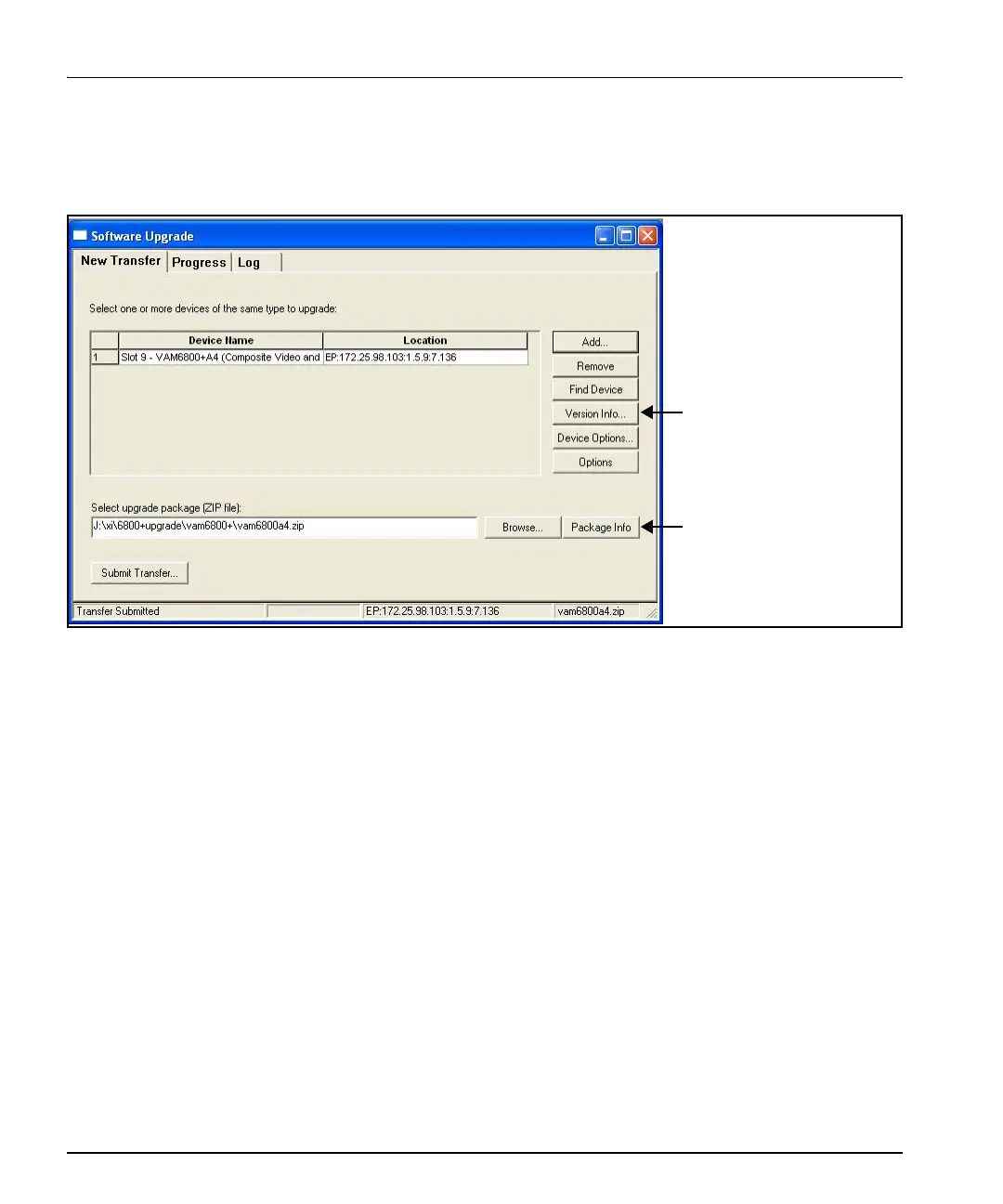

Figure 2-4. Software Upgrade Tool’s New Transfer Tab
7. On the New Transfer tab, click Add.
The Device Selection dialog opens.
8. Select one or more devices, and then click OK to close the Add
Device dialog box.
You can only add one unit from each IP address. All items in a
frame have the same IP address.
The selected devices appear in the table under Device Name. These
devices will receive the same upgrade package.
9. Before proceeding with the firmware upgrade, you can—
• Highlight the module’s position in the Navigation window by
clicking Find Device.
• View the firmware version currently installed on the module by
clicking Version Info.
10. Press Browse... to select the software upgrade package (ZIP file).
A standard Windows File Selection dialog opens.
Package Info
includes a list of the
components
contained in the ZIP
file.
Version Info lists
the firmware version
currently installed on
the module.
