4 HMX6801+B2/C2 and HMX6801+B4/C4 Installation and Operation Manual
Chapter 1: Introduction
• Programmable audio delays (up to 1.3 sec)
• Optional ancillary data space cleaning before embedding
• Card-edge LEDs to indicate audio and video signal presence and
module failure
• Serial and Ethernet remote control and monitoring
• Support for SMPTE 296M (50, 59.94, and 60 Hz rates) HD-SDI
Module Descriptions
Front Module
Figure 1-1 is a generic top-front view of a typical 6800+ module and
shows the general location of standard LEDs, controls, and jumpers.

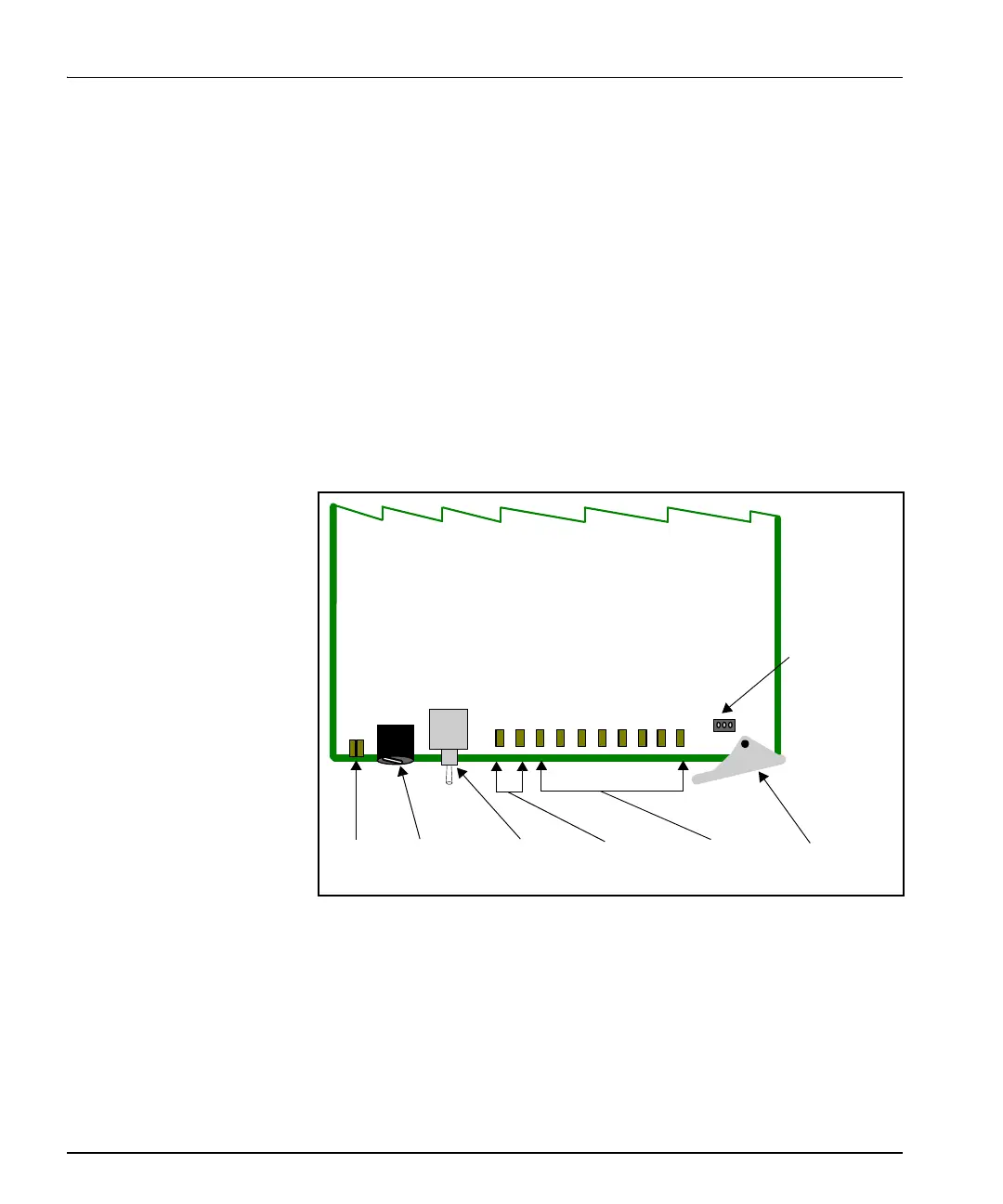

Figure 1-1. Typical 6800+ Module
Table 1-1 on page 5 briefly describes generic 6800+ LEDs, switches,
and jumpers. See “Chapter 2: Installation” for more information on
specific HMX6801+B2/C2 and HMX6801+B4/C4 module controls,
LEDs, and jumpers.
Module
status
LEDs
Mode select
rotary
switch
Navigation
toggle
switch
Monitoring
LEDs
Remote/local
control
jumper
Extractor
handle
Control
LEDs
