Back Connectors
HMX6801+B2
Figure 1-2 shows the double-slot back connector used by the
HMX6801+B2 module when installed in an FR6802+XF frame.

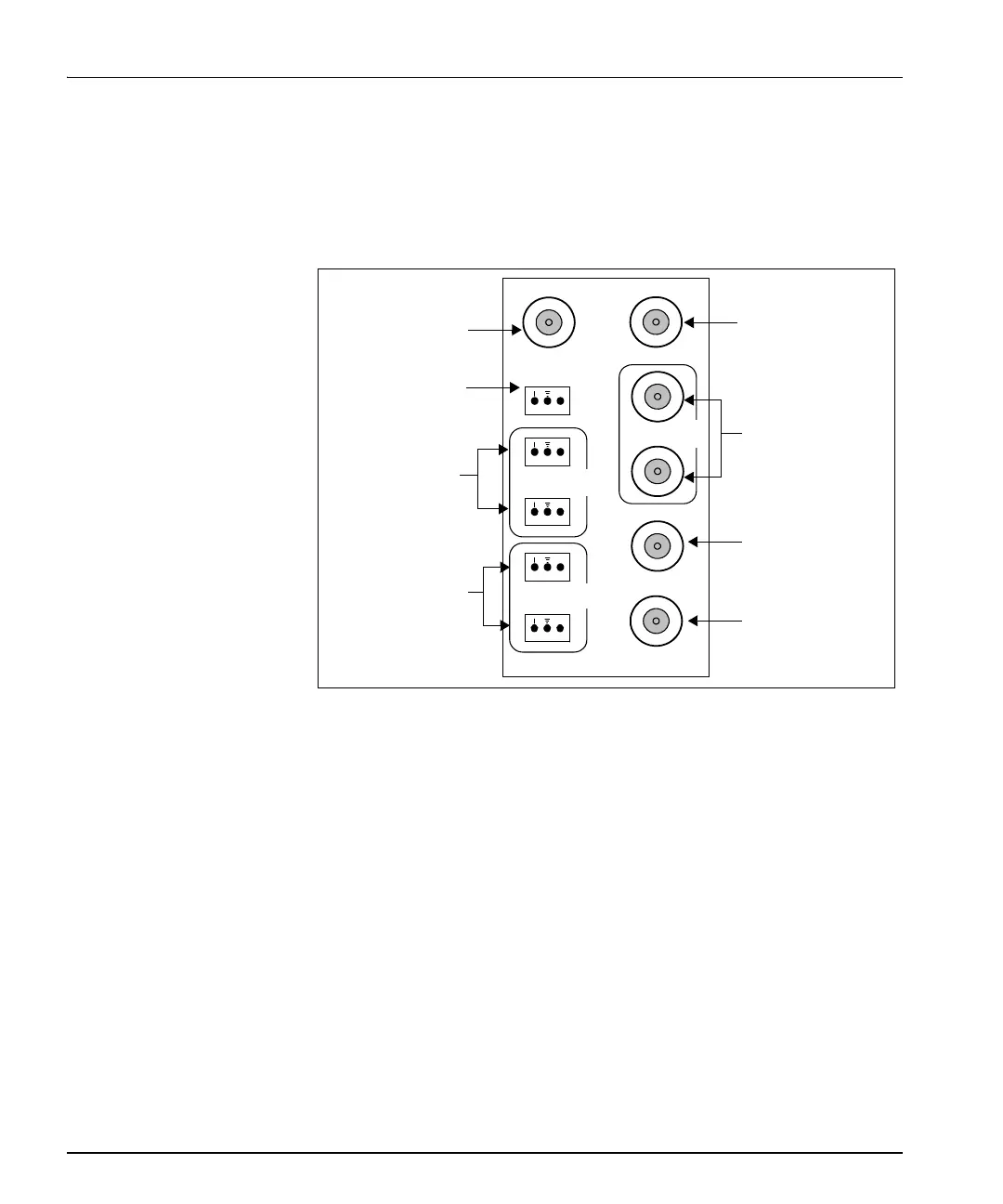

Figure 1-2. HMX6801+B2 Back Connector
SDI IN
DATA I/O
1
2
SDI
OUT
AUX IN
DARS
IN BAL
DARS IN
1
2
AES
OUT
1
2
AES
IN
+
+
+
+
+
Reserved for
future use
Balanced AES
input channels
Balanced AES
output channels
SDI video outputs
SDI video input
Balanced
DARS input
Unbalanced
DARS input
Reserved for
future use
