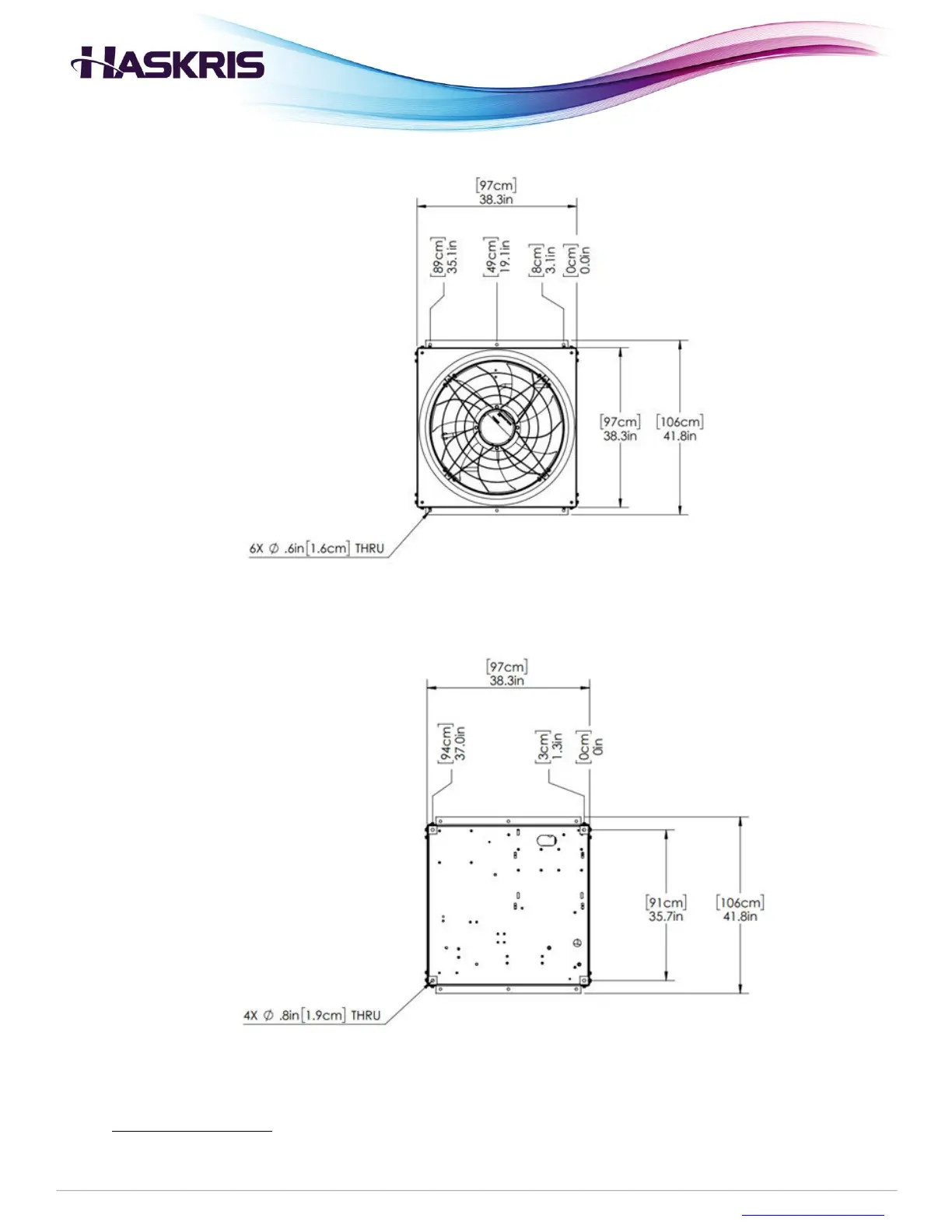

Mounting Hole Locations for Non-OSHPD Sites
–
OPC5, OPC8, OPC12, OPC15
Mounting Hole Locations for OSHPD Sites
–
OPC5, OPC8, OPC12, OPC15
Seismic SDS level 1: IP=1.5; SDS=2.00g for z/h=1 & SDS=2.50g for
z/h=0
