1B30E, 1B50E / 02 - Rev. 01 Operation and use
HATZ
41Manual
NOTICE
See also starting instructions in the documentation for the com-
plete machine.

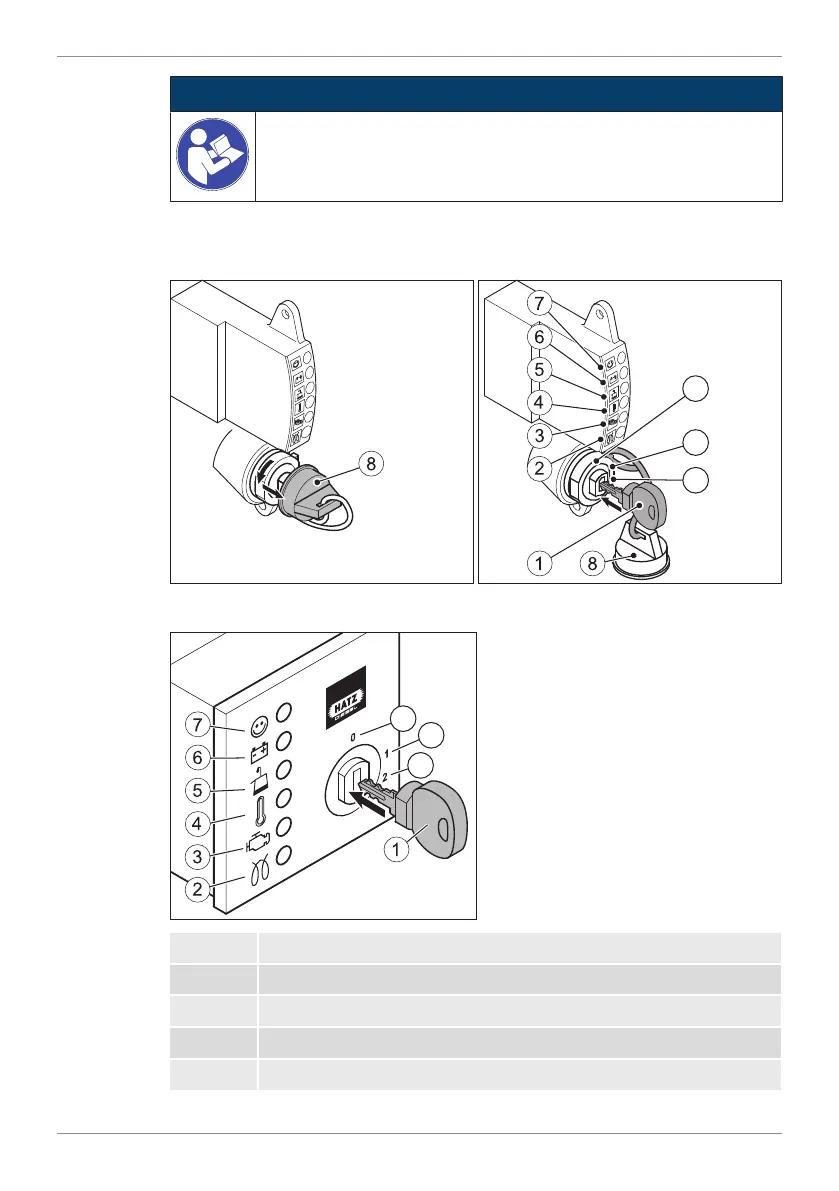

Overview – HATZ instrument boxes
Standard (instrument box attached on the engine)
0
I
II
Option (external instrument box)
II
I
0
1 Starting key
2 Pre-glow indicator (option)
3 Engine fault
4 Engine temperature indicator
5 Oil pressure indicator
