HBM AE501 - EM201;EM201 K2 Output Stage Setup

28
Clip
HBM A0114-6.3 en
4.5 EM201 / EM201K2 Output stage

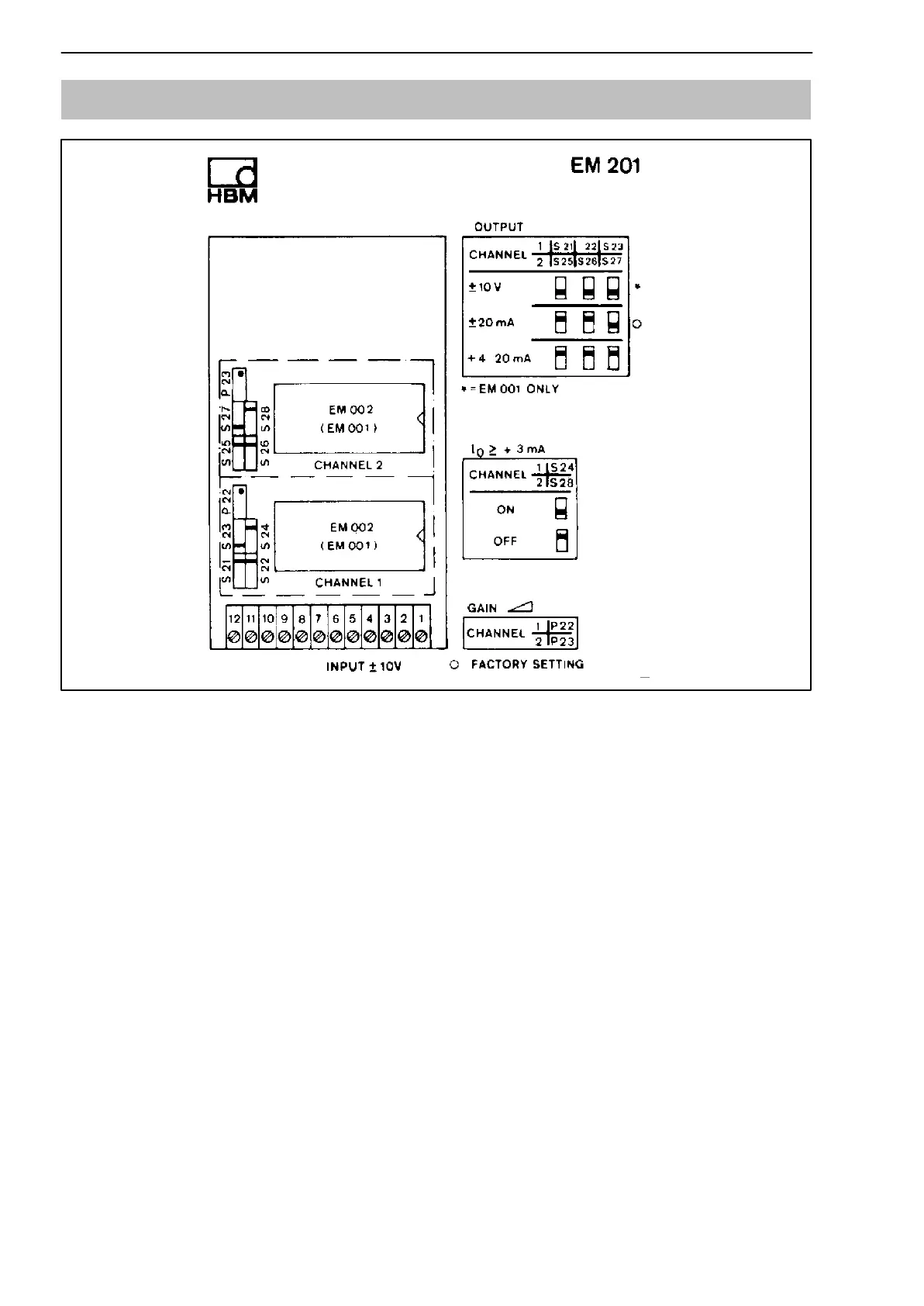

Fig. 4.7: Stick-on label in housing
The EM201 Output stage has been equipped with one EM002 module, the
EM201K2 Output stage has been equipped with two EM002 modules. The
EM002 module converts the amplifier output-voltage into a proportional cur-
rent signal. For both versions the same housing has been used. Depending
on the switch positions, the following current outputs are available:
• "20 mA current output
S21/22 (S25/26) in upper position
S23 (S27) in lower position
S24 (S28) in OFF position
• 4 ... 20 mA current output
S21/22 (S25/26) in upper position
S23 (S27) in upper position
S24 (S28) in ON/OFF position
