3.3 NT101A, NT102A Power supply

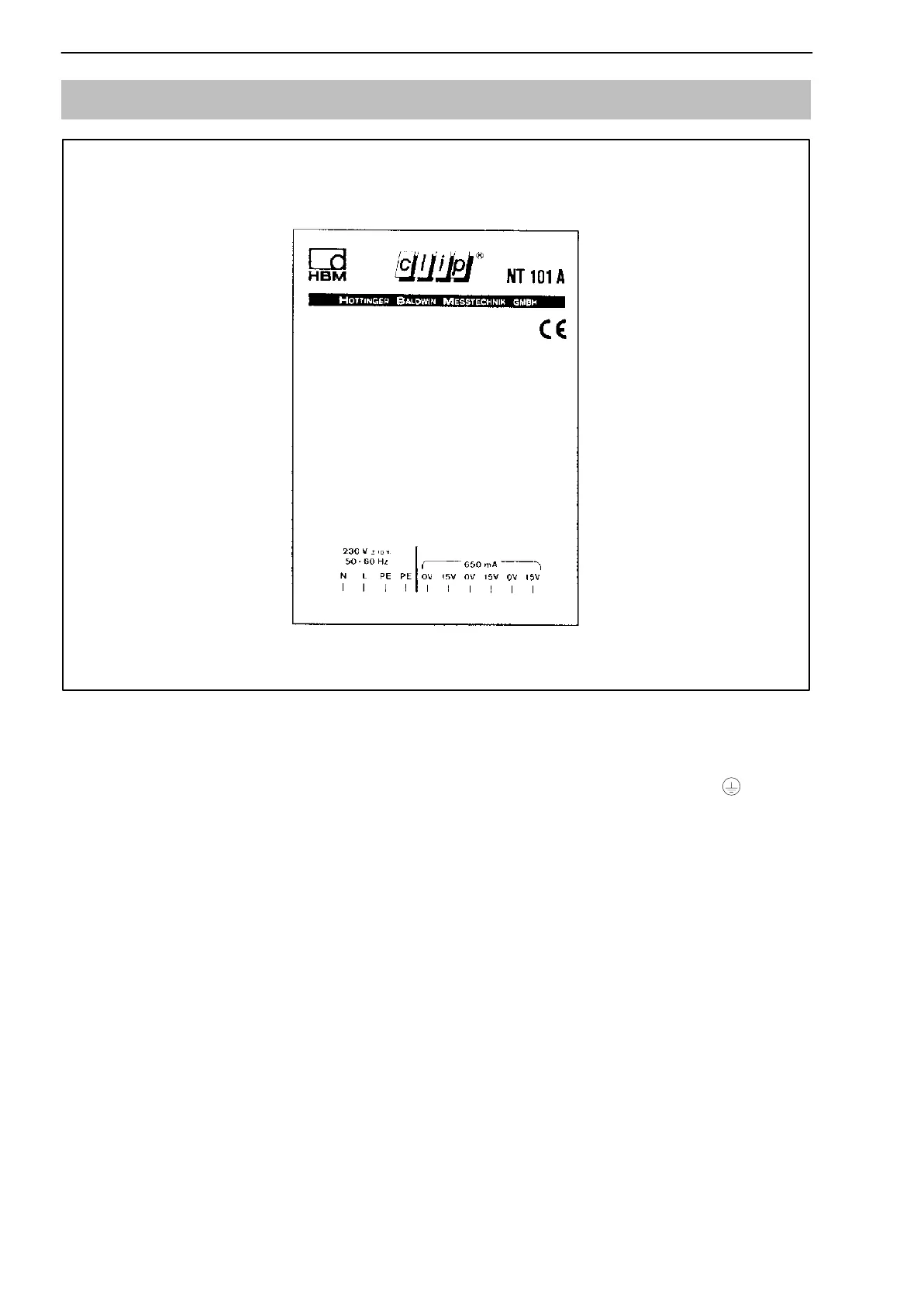

Fig. 3.3: Connection of the power supply
The mains voltage (230 V for NT101A, 115 V for NT102A) must be connected
to N and L (phase); the protective ground wire must be connected to .
The D.C..-voltage outputs are fed to pairs of internally connected terminals
(0 V and 15 V). The max. output current is 650 mA.
