HBM DMP41 - Page 70

Configuration

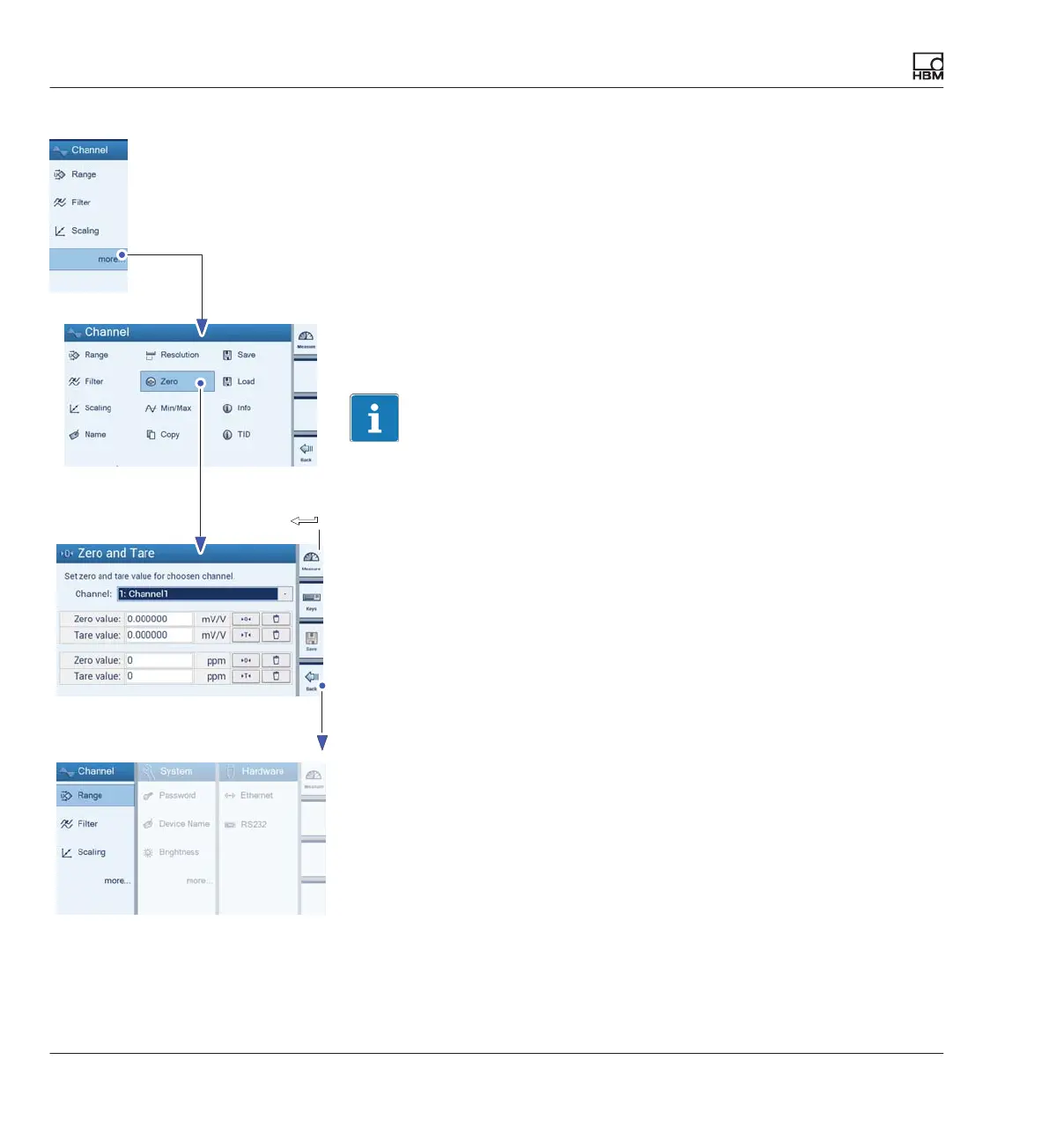

Configuring measurement channels in setting mode
70 A03470_07_E00_00 HBM: public DMP41
The input of the unit and the mV/V value are synchronized.
► Press more....
► Press Zero.
► Enter a value for Zero value (via keypad or F2).
► Enter a value for Tare value (via keypad or F2)
► Press Save.
► Press Back.
Important
When zeroing the mV/V value, the user-defined unit is set in accordance
with the characteristic curve (non-zero).
When zeroing the user-defined unit, the mV/V is set in accordance with the
characteristic curve (non-zero).
F2 or
