3.3 Installation options
In principle, there are two possibilities for torque flange mounting: with the
antenna ring complete or dismantled. We recommend mounting in
accordance with Section 3.3.1. If mounting in accordance with Section 3.3.1 is
not possible, (e.g. in the case of subsequent stator replacement), you will
have to dismantle the antenna ring. It is essential in this case to comply with
the notes on assembling the antenna segments (see "Installing the stator").

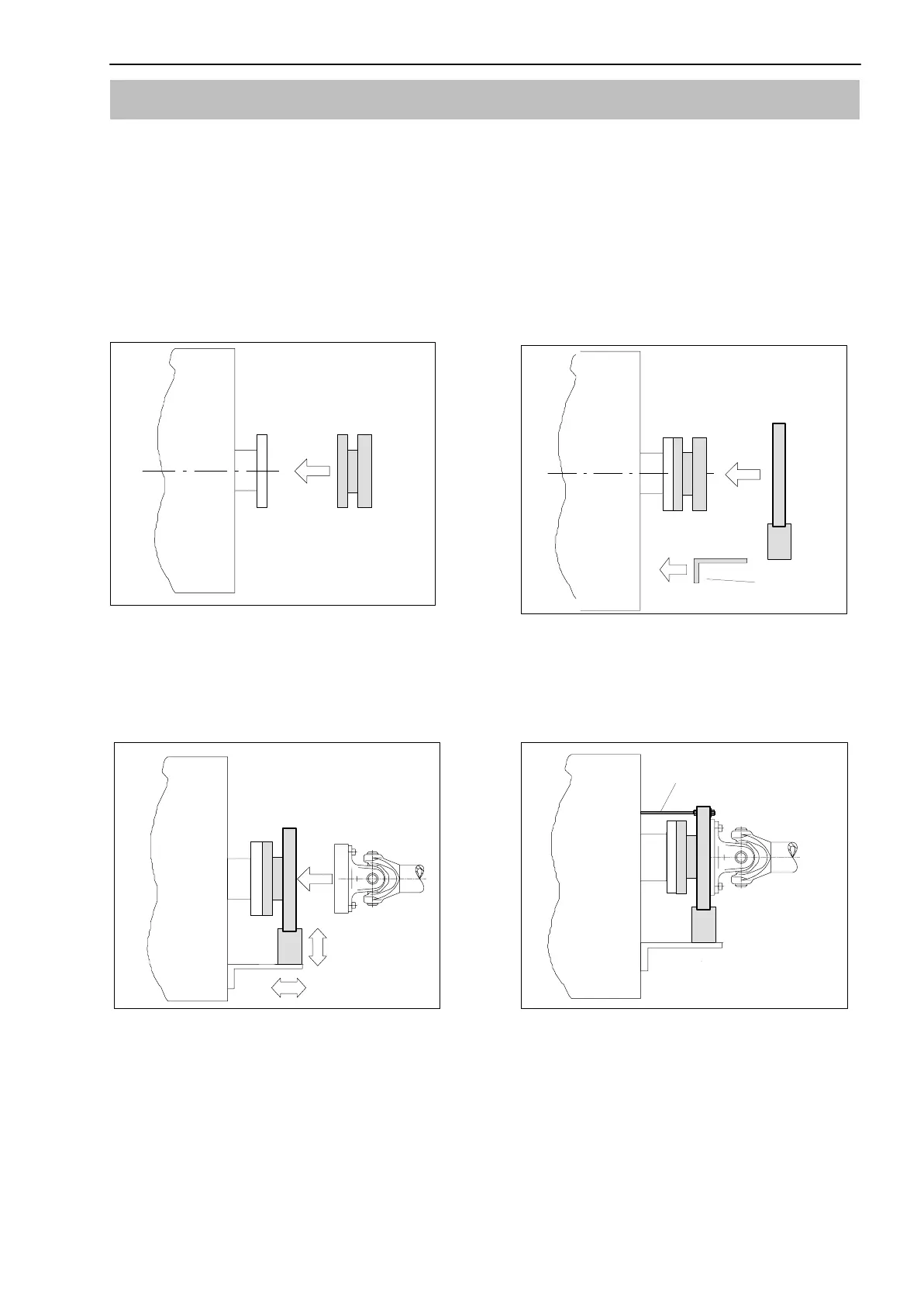

3.3.1 Installation without dismantling the antenna ring
1.Installrotor
2.Installstator
Customer
mounting
3. Align stator and finish installation
Supportsuppliedbycustomer
4. Mount the support
