10 Supplementary technical information

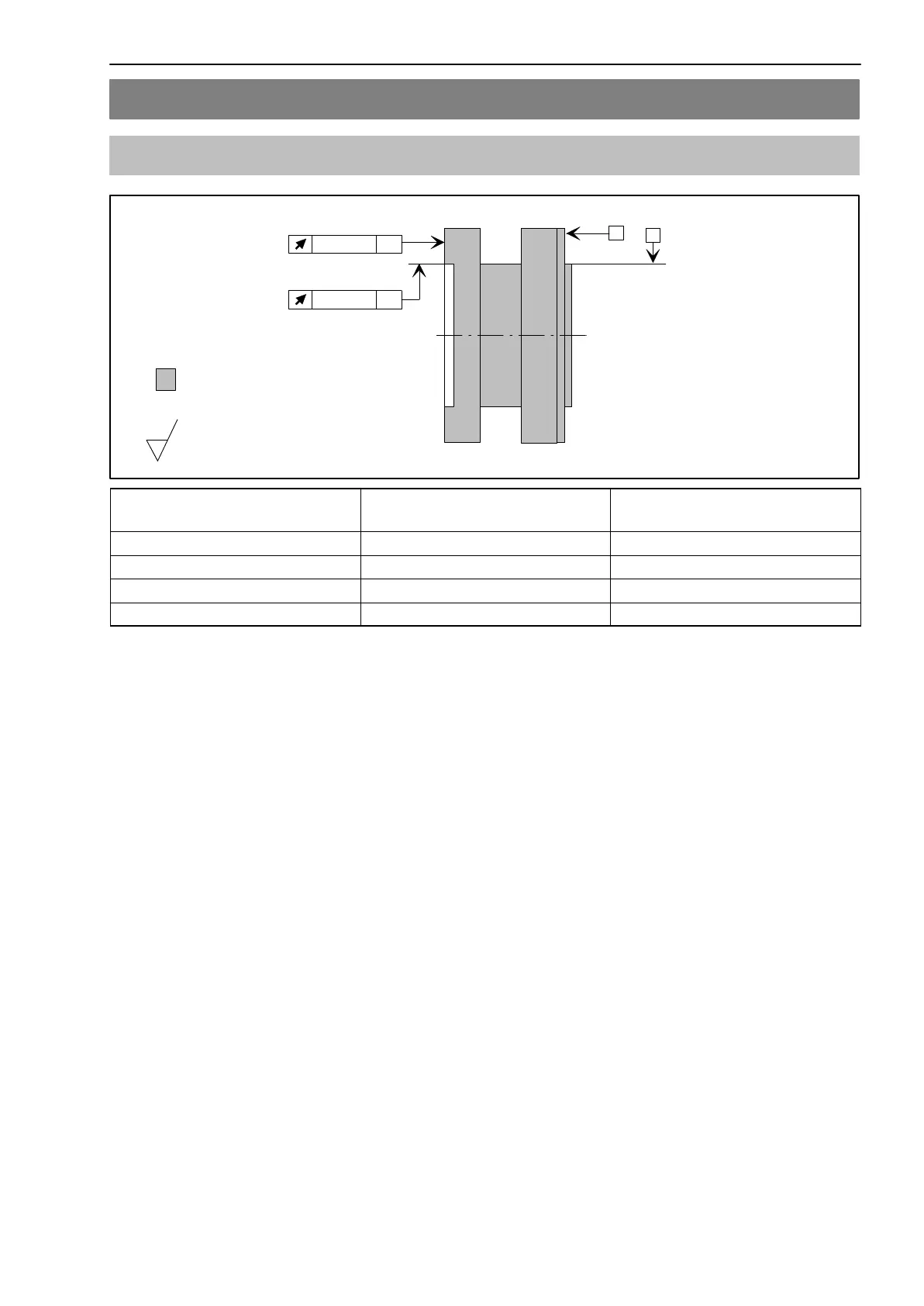

10.1 Runout and concentric tolerances
Internal centering
A
Axial runout
AB
B
Hardness 46 ... 54 HRC
Surface quality of the runout and
concentric surfaces (A, B and AB)
0.8
Rad. runout
AB
Measuring range (NVm) Axial runout tolerance (mm) Radial runout tolerance
(mm)
500 0.01 0.01
1 k 0.01 0.01
2 k 0.02 0.02
3 k 0.02 0.02
To ensure that the torque flange retains its characteristics once it is installed, we
recommend that the customer also chooses the specified form and position
tolerances, surface quality and hardness for the connections provided.
