HBM T40 - Page 15

15
T40
HBMA24633.0en/de
Fan type lock washers
Hole ∅ 4.2 mm
for fixing the antenna
segment
Stator housing
upper
antenna segments
lower
Antenna segment bolts with
washers (M5)

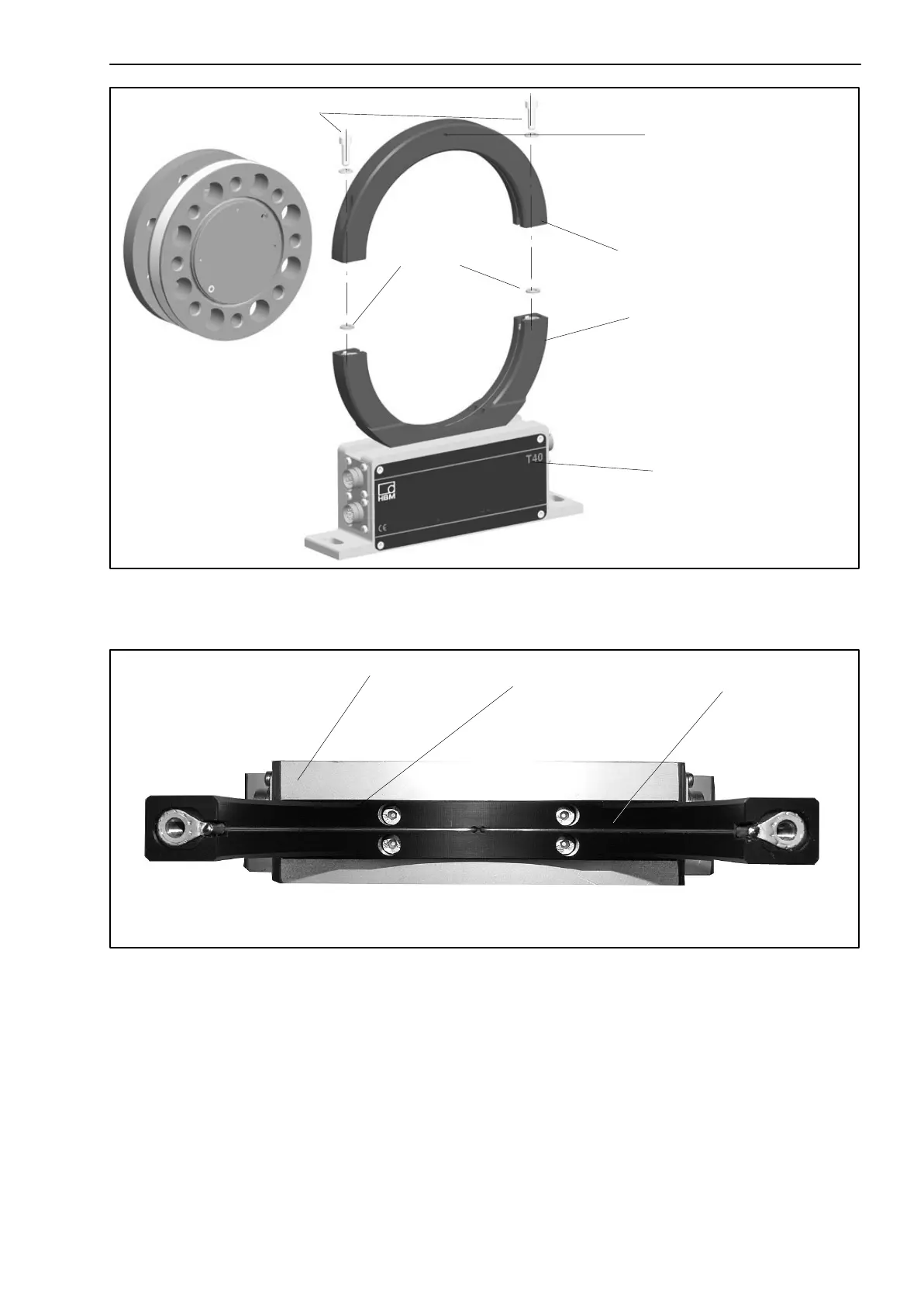

Fig.3.2: Bolted antenna segment connections on the stator
Stator housing
lower antenna segment
Antenna wire
Fig.3.3: Stator housing and lower antenna segment with antenna wire
1. Undo and remove the bolted connections (M5) on the upper antenna
segment. There are fan type lock washers between the antenna
segments. Make sure that they do not get lost.
2. Use an appropriate base plate to install the stator housing in the shaft train
so that there is sufficient possibility for horizontal and vertical adjustments.
Do not yet fully tighten the bolts.
3. Now use two hexagon socket screws to mount the upper antenna segment
removed in 1. on the lower antenna segment. Make sure that the two fan type
