6 Mounting

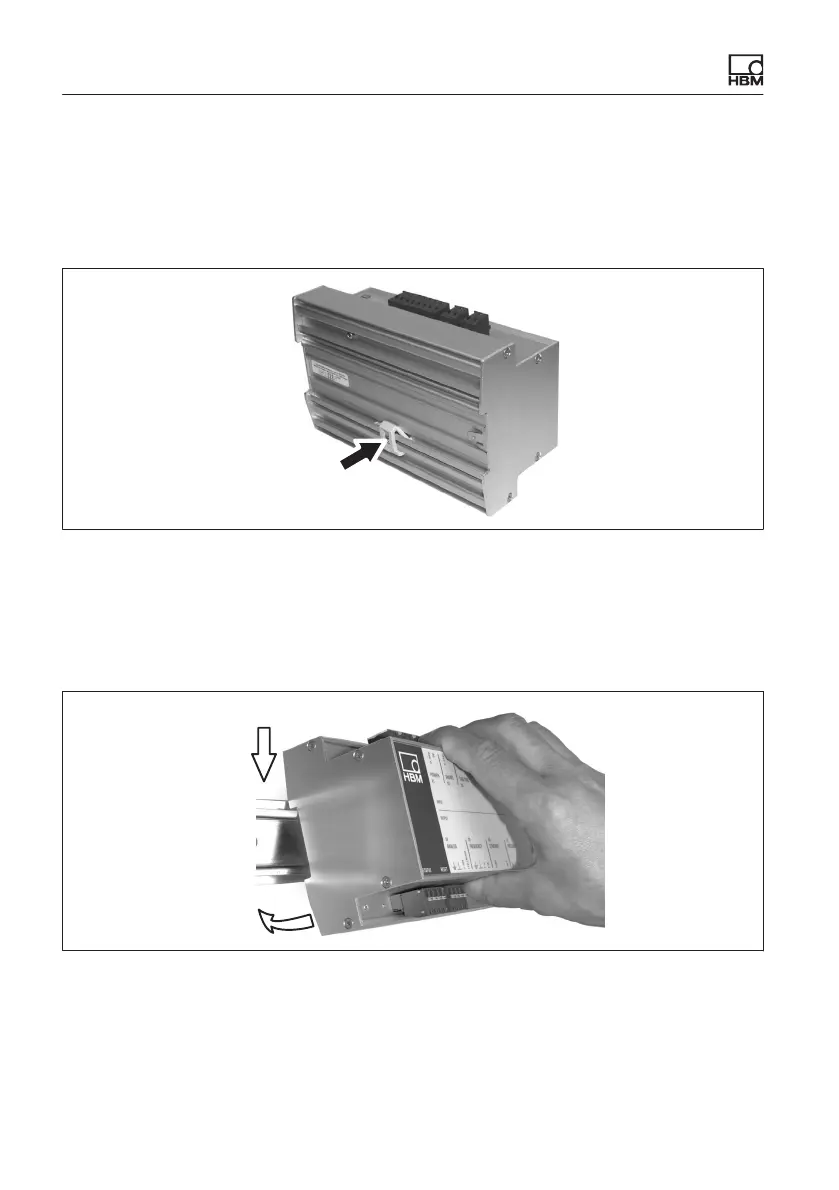

The TIM40 interface module is mounted on a DIN EN 60715 rail. A spring on
the back holds the housing in position.
Spring
Fig. 6.1 Housing back
► Hook the interface module into the upper guide of the rail.
► Press the housing against the rail until the spring engages in the lower
guide.
1.
2.
Fig. 6.2 Mounting on a DIN rail
