Removal
TIM40 A02590_04_E00_00 HBM: public 15
7 Removal
1
.
2
.

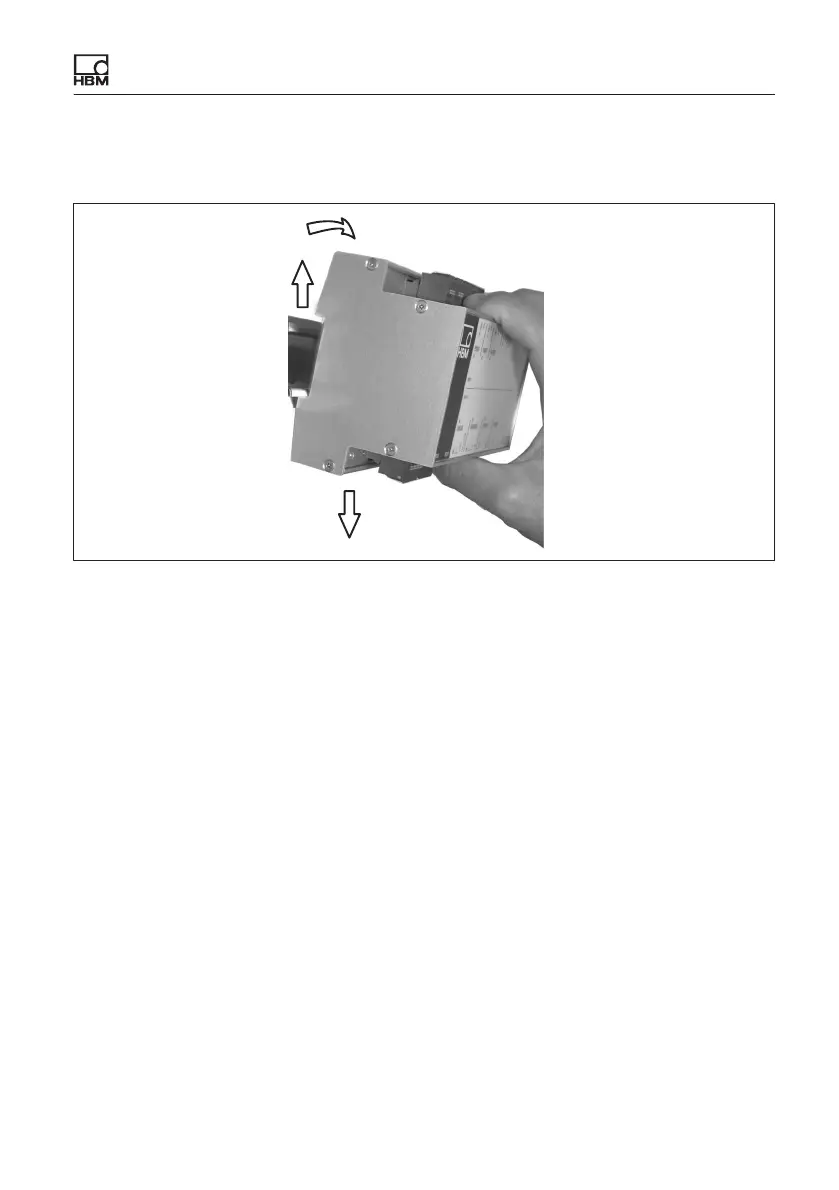

Fig. 7.1 Removal
► Push the housing up vertically and then tilt it lightly forwards.
► Pull the housing out downwards from the rail.
