9.3.1 Connect cable wires to spring‐loaded terminals
You can connect wires with a cross‐section of maximum 0.5 mm
2
to the
spring‐loaded terminals.
1. Press and hold down
spring pin
2. Insert bared cable wire fitted
with end sleeve
3. Release spring pin

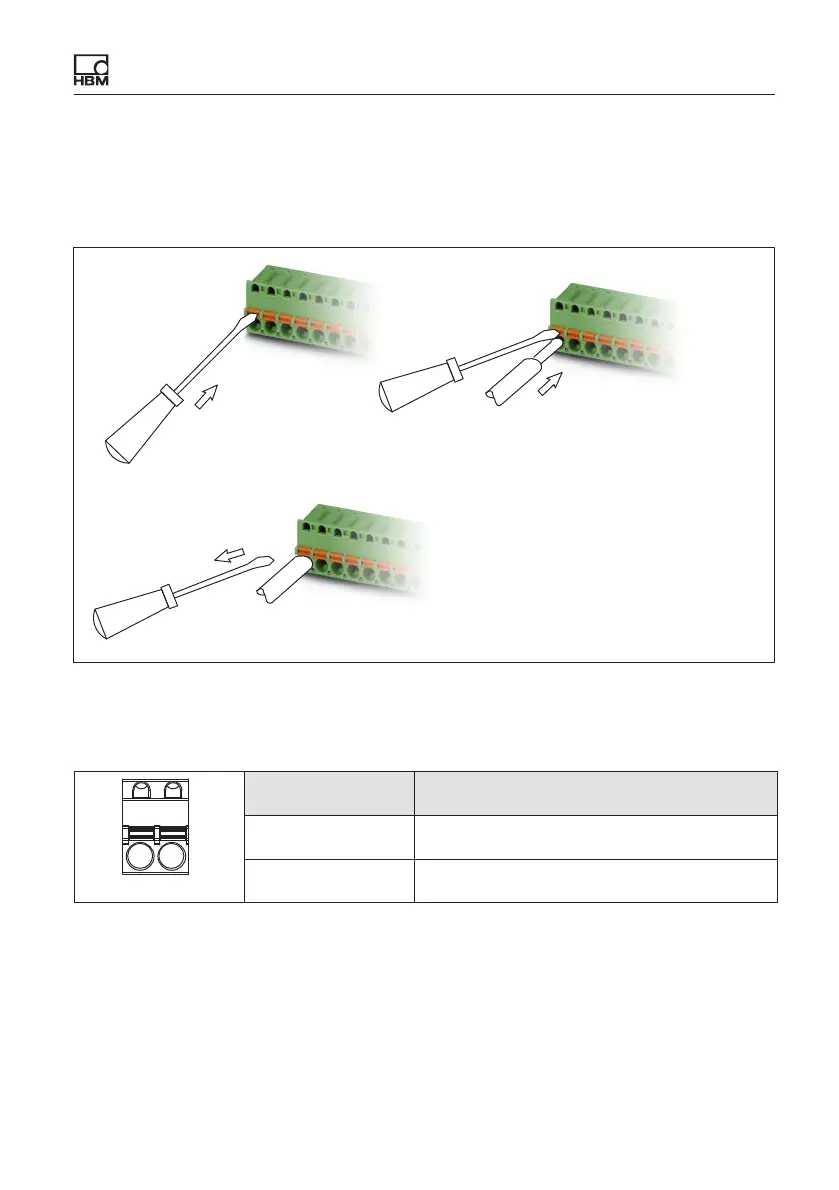

Fig. 9.2 Wire connection on spring‐loaded terminals
Connection X1 for voltage supply
12
Terminal Assignment
1 0 V
2 18 ... 30 V
