13.1 CANopen
13.1.1 Connection
The TIM40 interface module has a slot for an Anybus

‐CC‐CANopen module,
over which both measured values can be transmitted and simple parameteriza
tion of the module can be implemented (see 13.1.4 RPDO1). Different baud
rates can be selected up to a maximum of 1 MBaud. The interface protocol
corresponds to the CANopen standard.
Connector plug

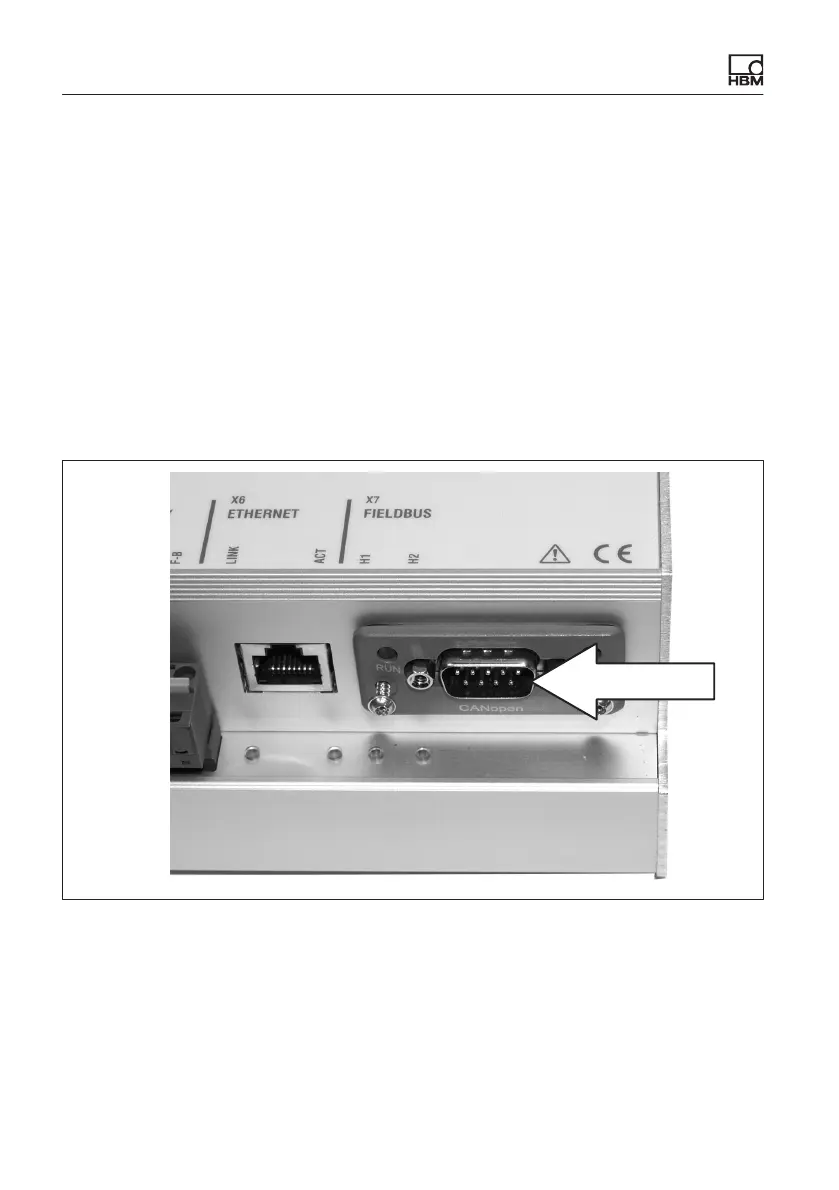

Fig. 13.1 Anybus
[
‐CC‐CANopen module
