Interface description
TIM40 A02590_04_E00_00 HBM: public 37

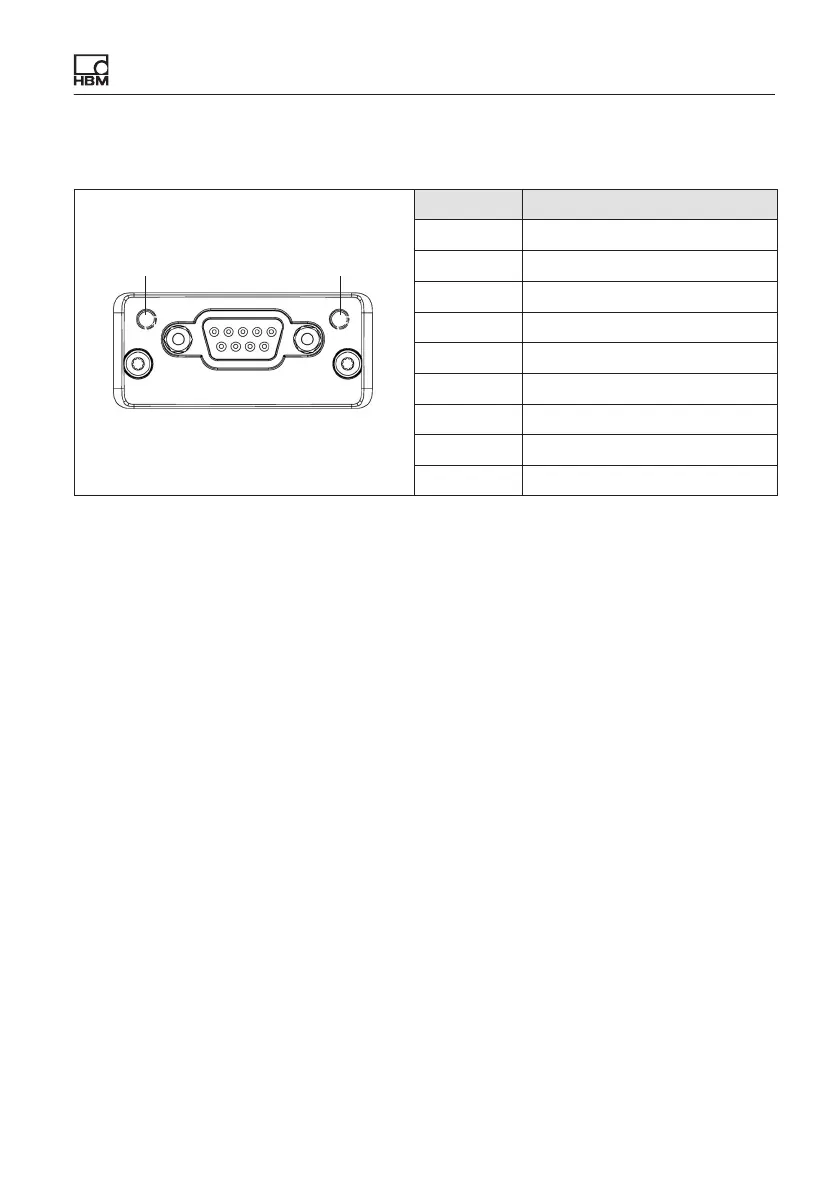

Connector pin assignment
51
96
Top view
LED “RUN” LED “ERROR”
Pin Assignment
1 No function
2 CAN LOW
3 CAN GND
4 No function
5 Shielding connected to enclosure grou
n
6 No function
7 CAN HIGH
8 No function
9 No function
