Electrical connection
TIM40 A02590_04_E00_00 HBM: public 25

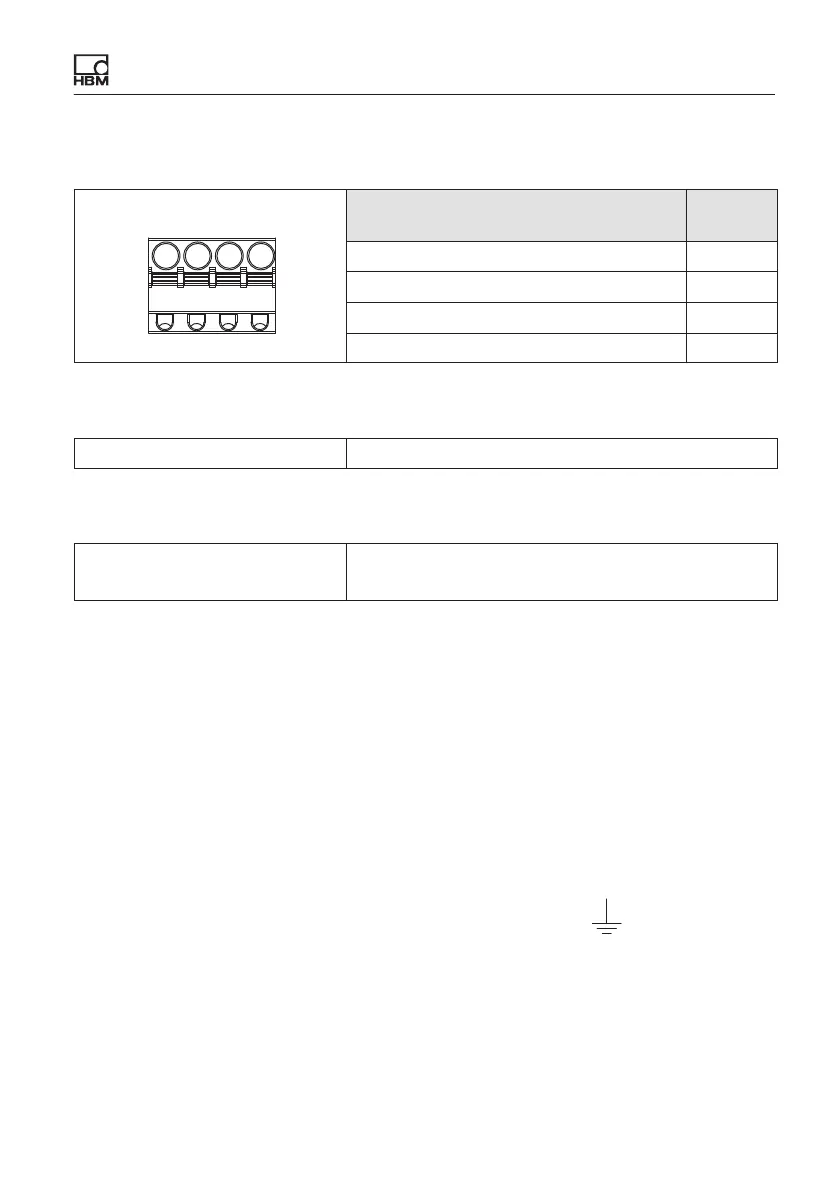

Connection X5 for frequency output
1234
Terminal
Assign
ment
1 Shielding
2 GND
3 F‐A
4 F‐B
Connection X6 for Ethernet
Plug type RJ45
Connection X7 for fieldbus
Plug type
CANopen: SUB‐D 9‐pin
PROFIBUS: SUB‐D 9‐pin
9.4 Supply voltage
The TIM40 module must be operated with a separated extra‐low voltage (sup
ply voltage 18 to 30 V DC). The supply voltage lead must be no more than 3 m
long. Connecting to a direct voltage network in accordance with EN 61326 is
not permitted. Instead, use a power pack that can be e.g. mounted together
with the TIM40 in the control cabinet.
The supply voltage is electrically isolated from signal outputs and calibration
signal inputs. Connect a separated extra‐low voltage of 18 V to 30 V to Pin 1
and Pin 2 of terminal X1.
If a cable shield is present, apply the shield to the ground ( ) of input X3.
