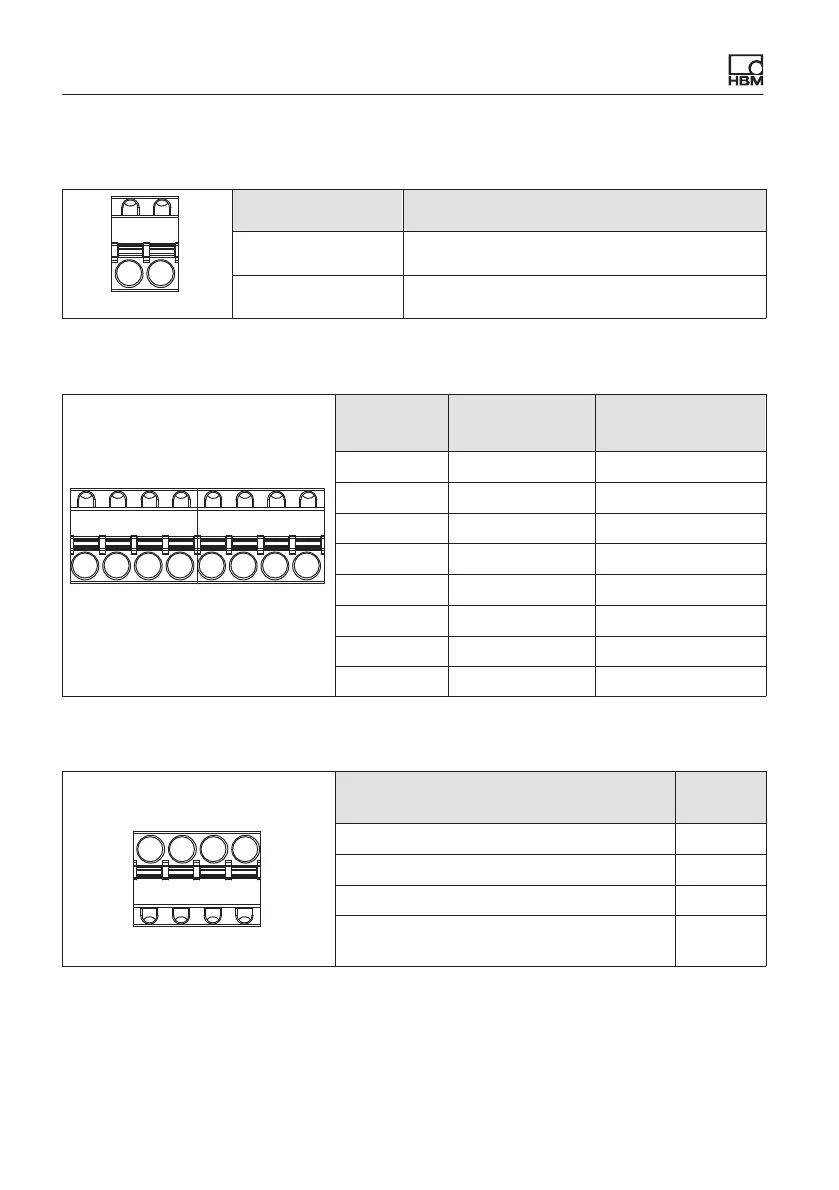

Electrical connection
24 A02590_04_E00_00 HBM: public TIM40
Connection X2 for shunt signal trigger
12
Terminal Assignment
1 0 V
2 5 ... 24 V
Connection X3 for torque measurement flange T40
43218765
Terminal Assignment Color code
KAB174
1 RS422‐RA rd
2 RS422‐RB wh
3 DGND vt
4 RS232‐RX gn
5 RS232‐TX gy
6 0 V bu
7 24 V bk
8 Shielding ye
Connection X4 for analog output
1234
Terminal
Assign
ment
1 Shielding
2 GND
3 "10 V
4
12"8
mA
