Interface description
44 A02590_04_E00_00 HBM: public TIM40

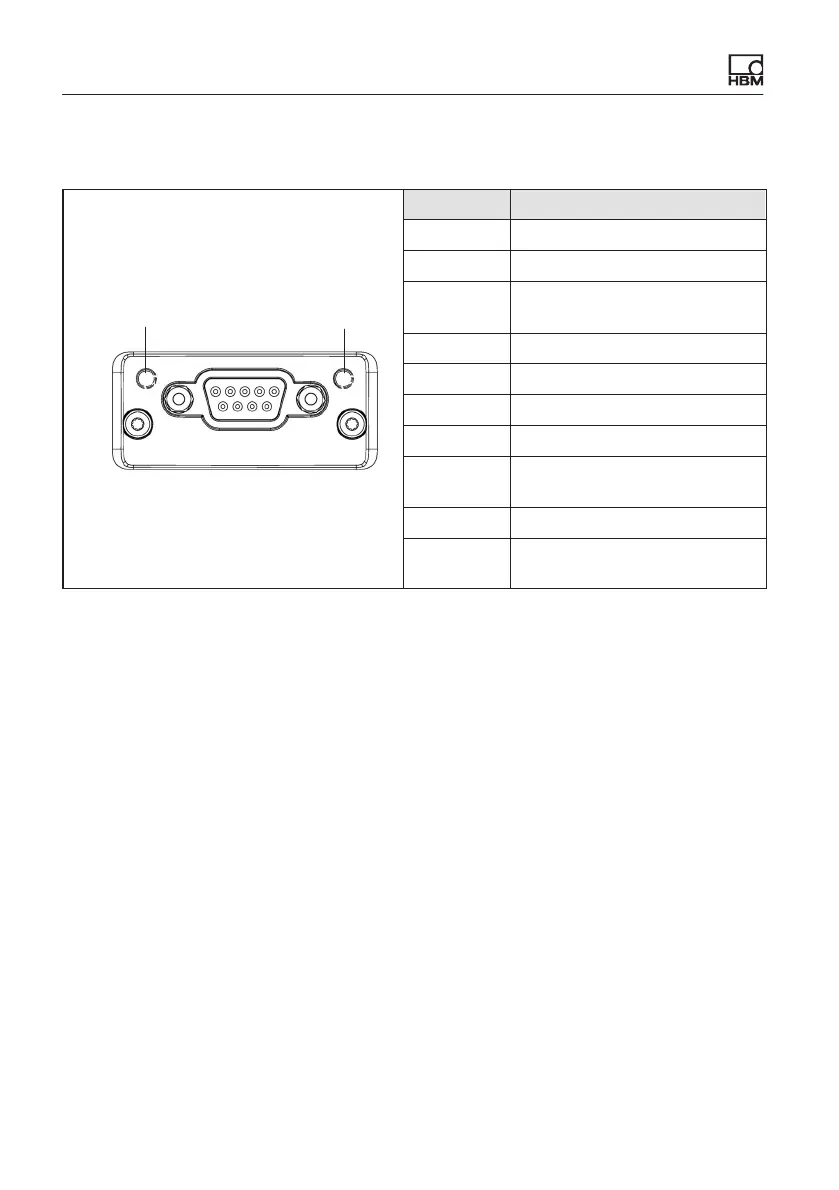

Socket assignment
15
69
Top view
LED “Operation Mode” LED “Status”
Pin Assignment
1 No function
2 No function
3 Data line B (RxD/TxD minus,
RS 485)
4 RTS
5 GND Bus
6 +5 V Bus output
7 No function
8 Data line A (RxD/TxD plus,
RS 485)
9 No function
Cable shield connected to
housing ground
