4K Integral 2 – User Manual
Connecting Cables
To use your 4K Integral 2:

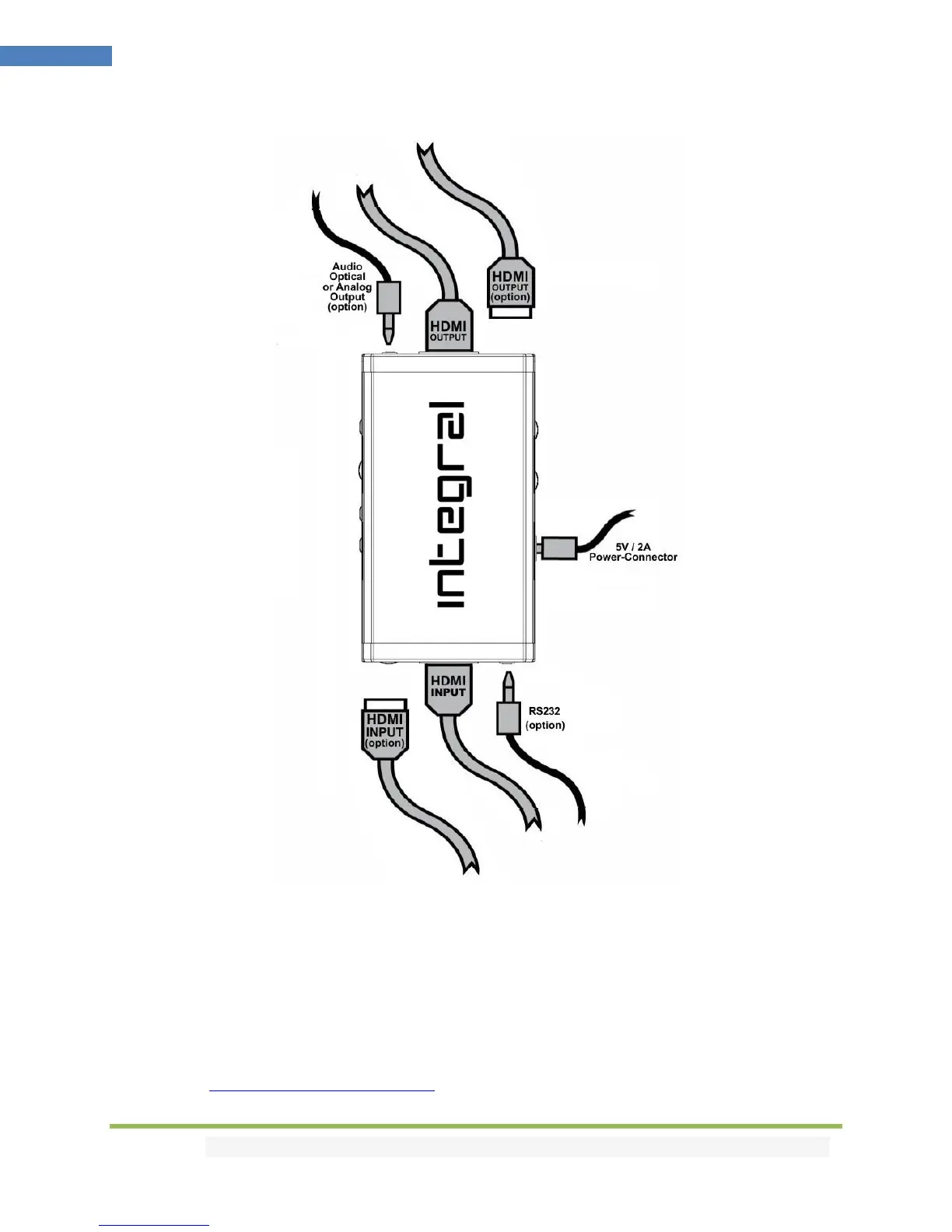

• Connect a HDMI input cable to the HDMI input.
• Connect a HDMI output cable to the HDMI output.
• Connect the Integral 2 power supply.
• Connect any additional HDMI input/output cable, RS232 or any audio output cable (optional).
HDMI/HDCP 1.x devices at output must be connected to TOP (Downscale) Output port. Make sure that
you are using 600MHz certified HDMI 4K cable if you plan to set up a 4K60 4:4:4 8b or 4K60 4:2:2 12b
600MHz 18Gbps link in your setup.
