20
80-23024 Issue 3r1 HEBER

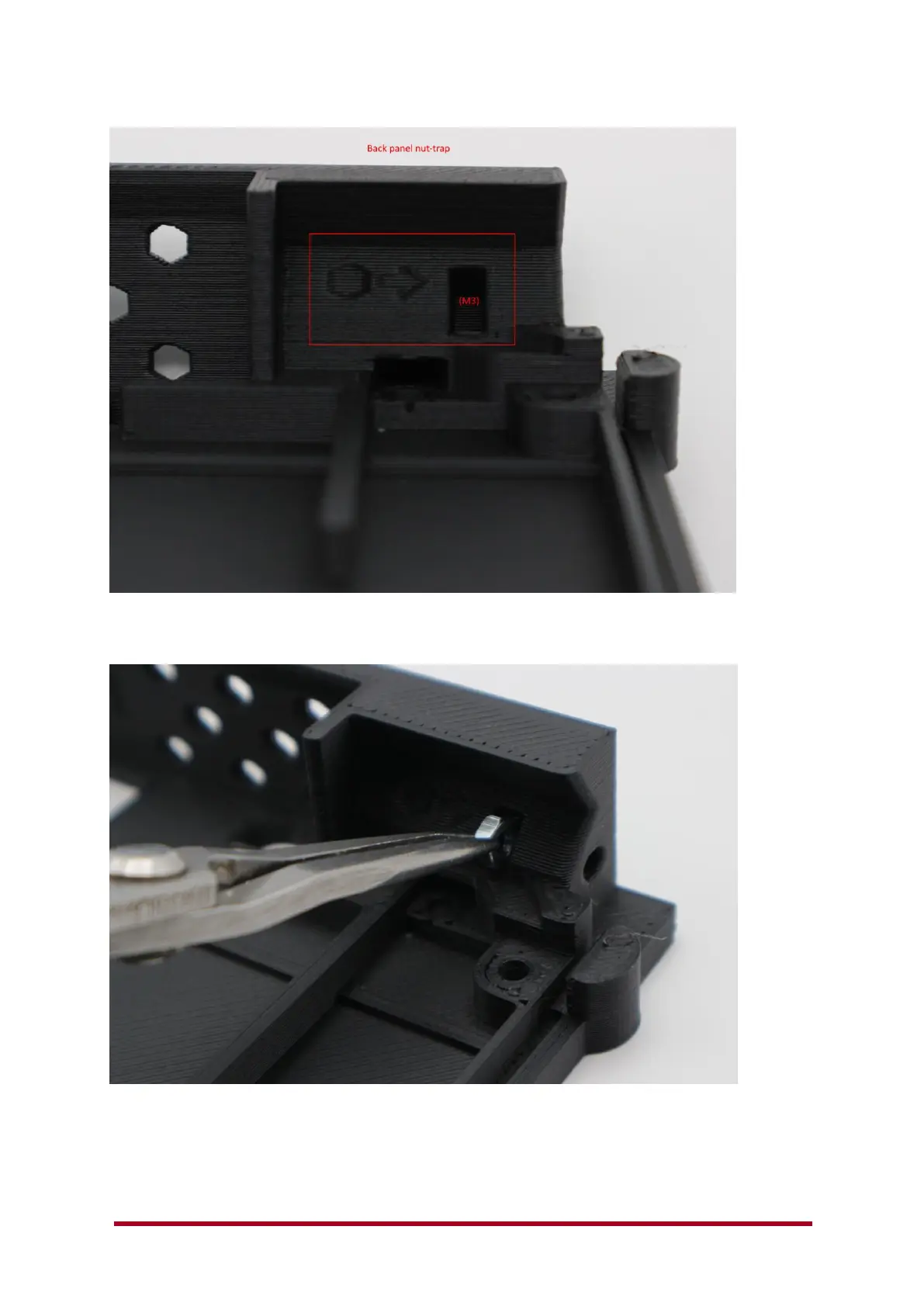

The base and front lid sections contain M3 Nut traps, these 4 M3 nuts must be fitted as shown below
-
