Heber MiSTer Multisystem - Page 24

21
80-23024 Issue 3r1 HEBER

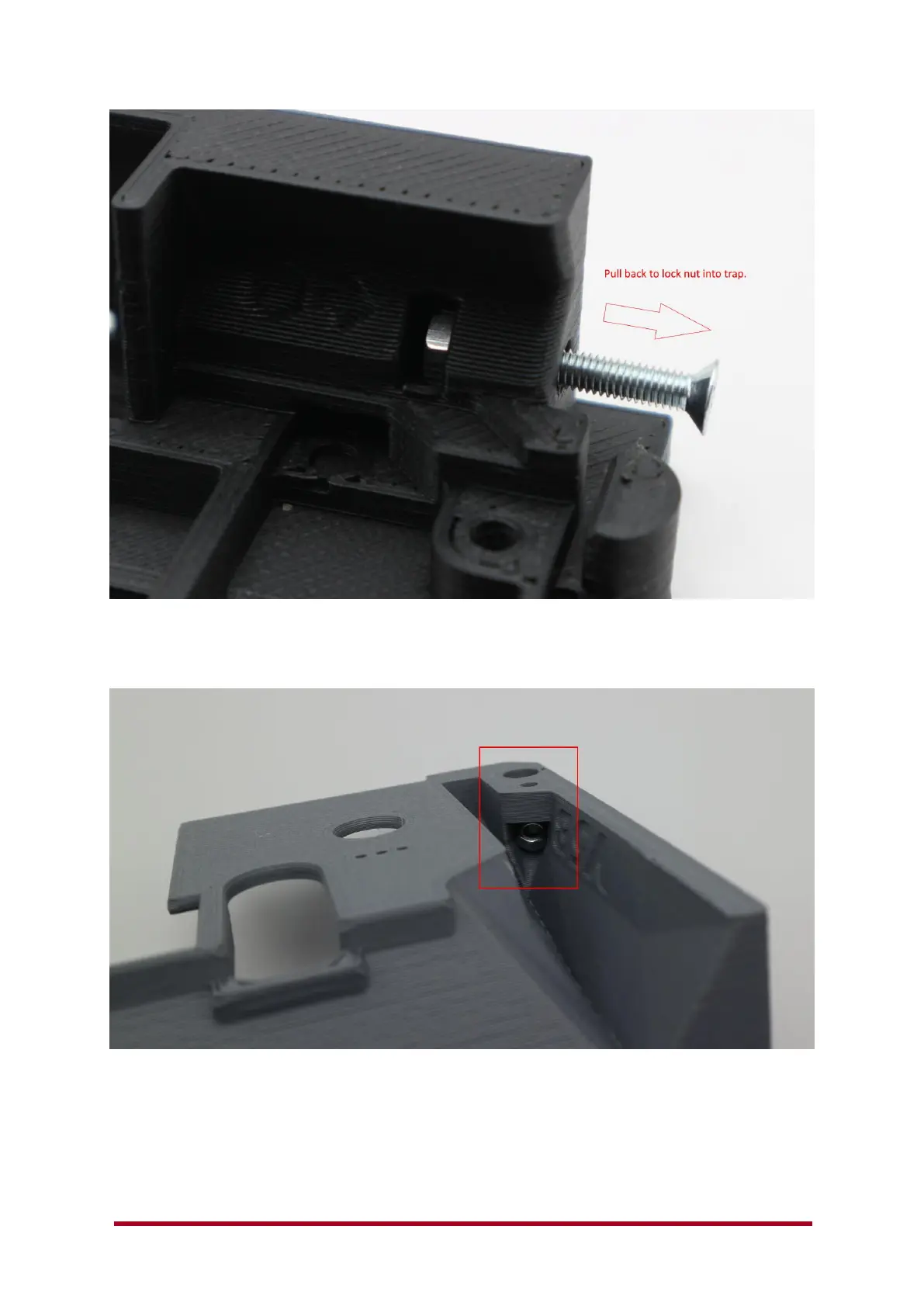

Use the supplied M3 x 20mm bolt to slightly grip the threads of the M3 nut, then pull the nut back
into the nut trap, you should feel the nut firmly lock into the 3D printed material. Repeat for the
other side of the base – back panel nut traps.
The front lid section also has two nut traps. Drop an M3 nut into the pocket.
