HEIDELBERG Speedmaster CD 102 - Page 110

GR SG9015858000000000 GR SG9015874000000000 GR SG9015854000000000
Preset Plus Feeder
confidential
C.1.72
1
Fig. 102
1
Fig. 103

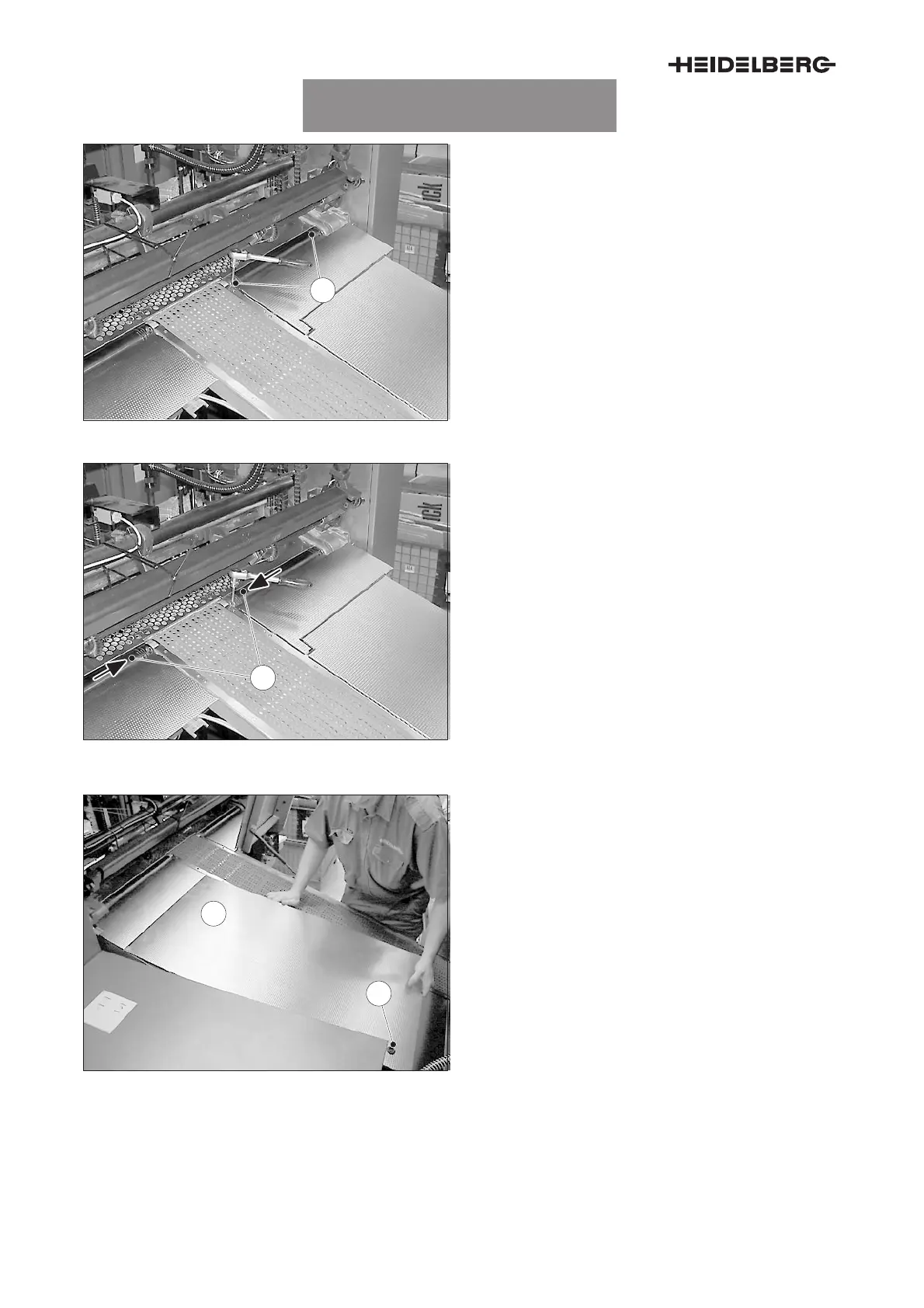

Connecting the tape driving roller
7. Crank the suction tape drive roller until the
screws (Fig. 102/1) on D.S. and O.S. are ac-
cessible.
8. Push the segments of the suction tape drive
roller on D.S. and on O.S. inwards in the direc-
tion of the arrow (Fig. 103/1).
If necessary, pull on the suction tape until the
journals on the suction tape are flush with the
grooves on the segments.
9. Tighten the four screws (Fig. 102/1) on D.S.
and on O.S.
1
2
Fig. 104
Installing the sheet guide plate D.S.
10. Place the sheet guide plate (Fig. 104/1) onto
the feeder frame on D.S.
11. Using the matching key, close the sheet guide
plate locking device (Fig. 104/2).
