Maintenance
confidential
D.3.6
Installing and removing the lifting suckers
1. Press the leaf spring (Fig. 3/1) back, slightly
raise the lifting sucker (Fig.3/3) and remove it.
2. Clean lifting sucker guide (Fig. 3/2) and lifting
sucker (Fig. 3/3).
3. Install the lifting sucker.
4. Check the smooth functioning of the installed
lifting suckers.
3.1.2 Checking the suction discs and replacing them if necessary
1
2

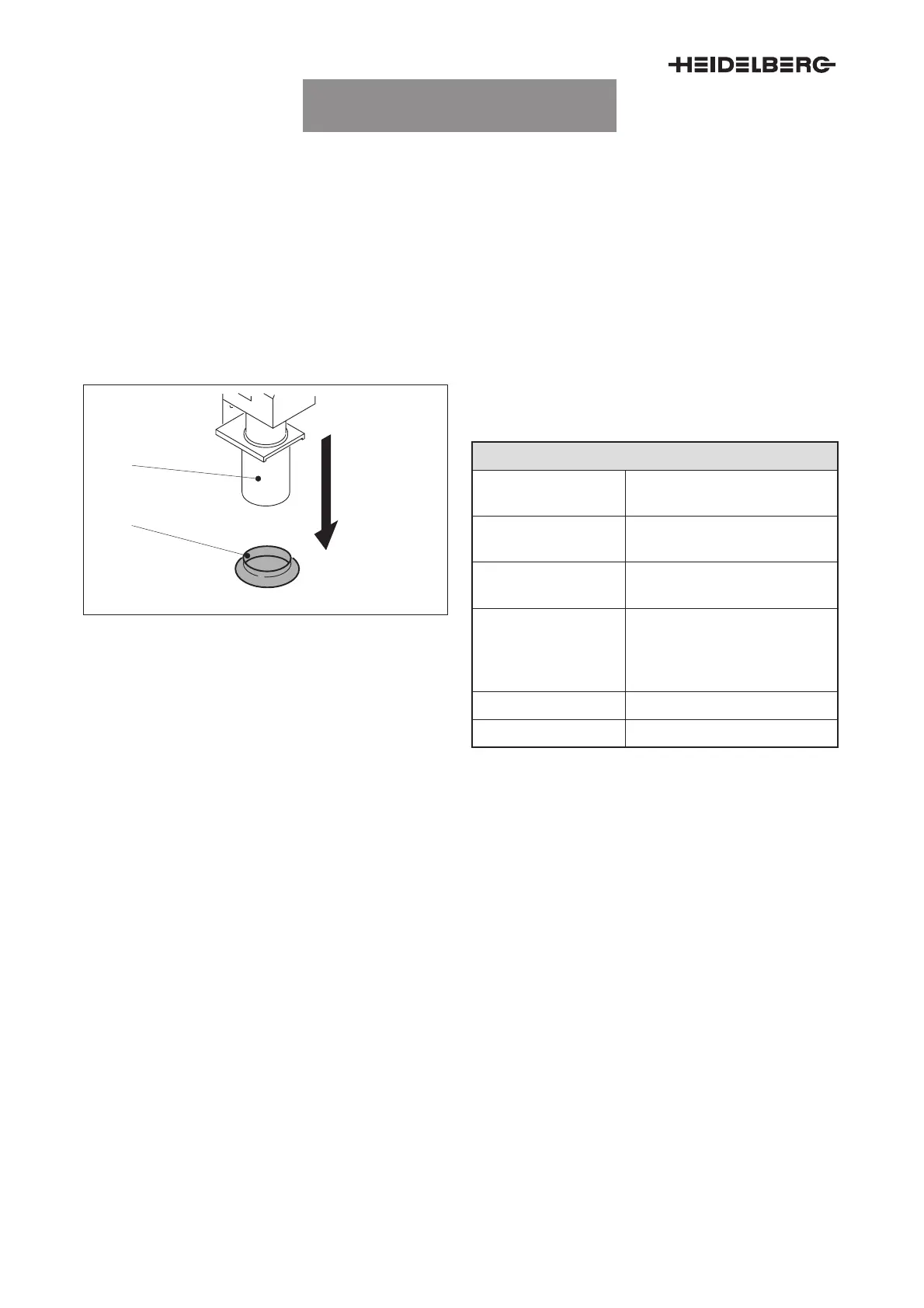

Fig. 4 Suction discs of the lifting suckers
1 Lifting sucker
2 Suction disc
Maintenance point description
Maintenance inter-
val
150 000 press rotations, or
daily
Maintenance loca-
tion
D.S./O.S.
Accessing the main-
tenance point
Remove the suction discs
from the lifting sucker.
Maintenance work Check the state of the suc-
tion disks for wear and po-
rosity; replace suction disks
if necessary.
Tool –
Cleaning solution –
Tab. 3
