3.1.3 Cleaning and checking the forwarding suckers
1
2
3
4

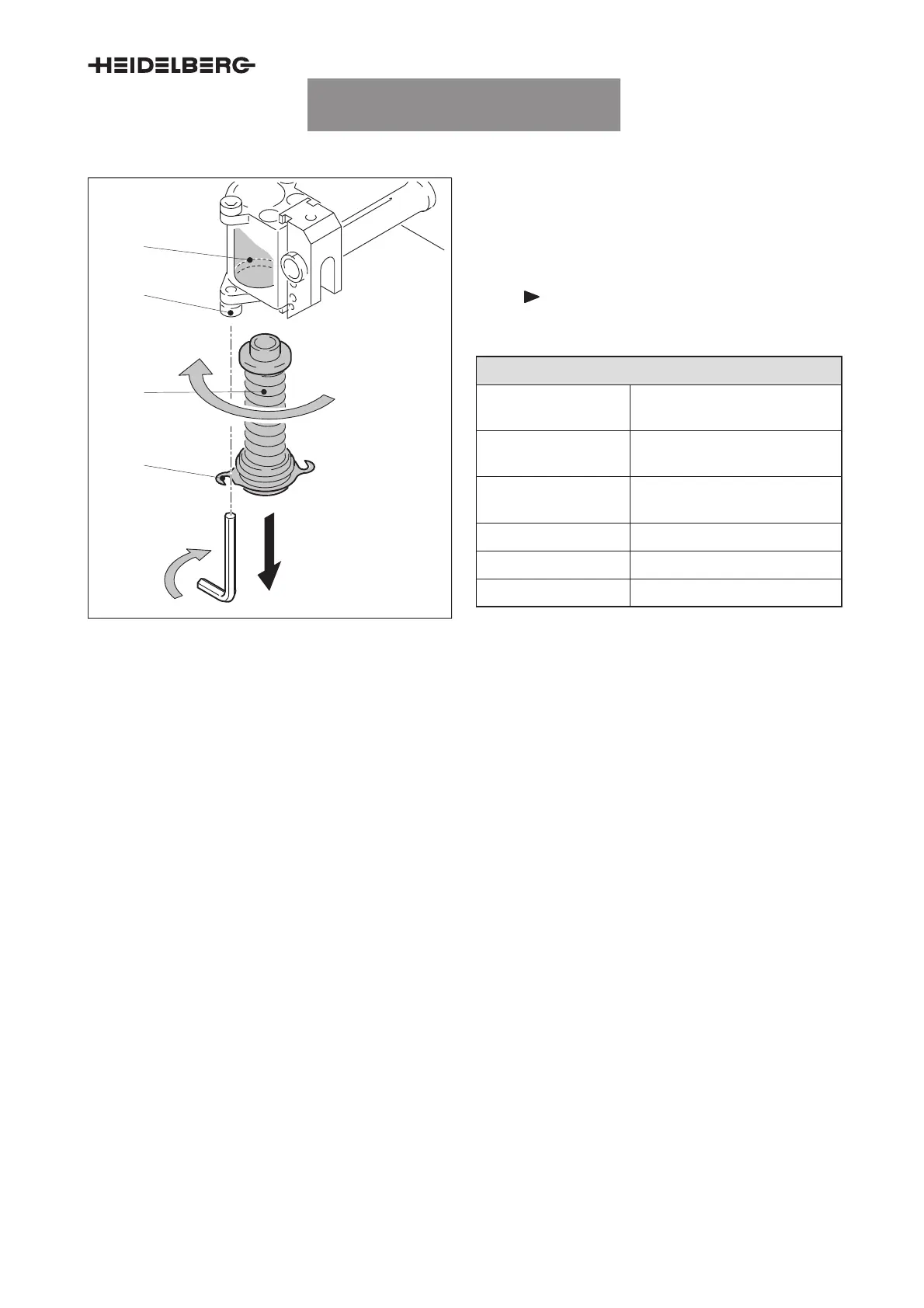

Fig. 5 Forwarding sucker
1 Forwarding sucker housing
2 Allen screw
3 Forwarding sucker
4 Bayonet catch
Note
Do not lubricate!
Maintenance point description
Maintenance inter-
val
3 000 000 press rotations, or
monthly
Maintenance loca-
tion
D.S./O.S.
Accessing the main-
tenance point
See installation and removal.
Maintenance work Clean 5 forwarding suckers.
Tool Soft, fluffless cloth
Cleaning solution See ”Approved cleaners”.
Tab. 4
Installing and removing the forwarding suckers
1. Loosen the Allen screws (Fig. 5/2). Turn the
bayonet catch (Fig. 5/4) anti-clockwise to re-
lease it and remove the forwarding sucker (Fig.
5/3).
2. Clean the forwarding sucker (Fig. 5/3) and the
forwarding sucker housing (Fig. 5/1).
3. Install the forwarding sucker.
4. Check the smooth functioning of the installed
forwarding suckers.
