Preset Plus Feeder
confidential
C.1.6
5
6
7
2
3
4
1

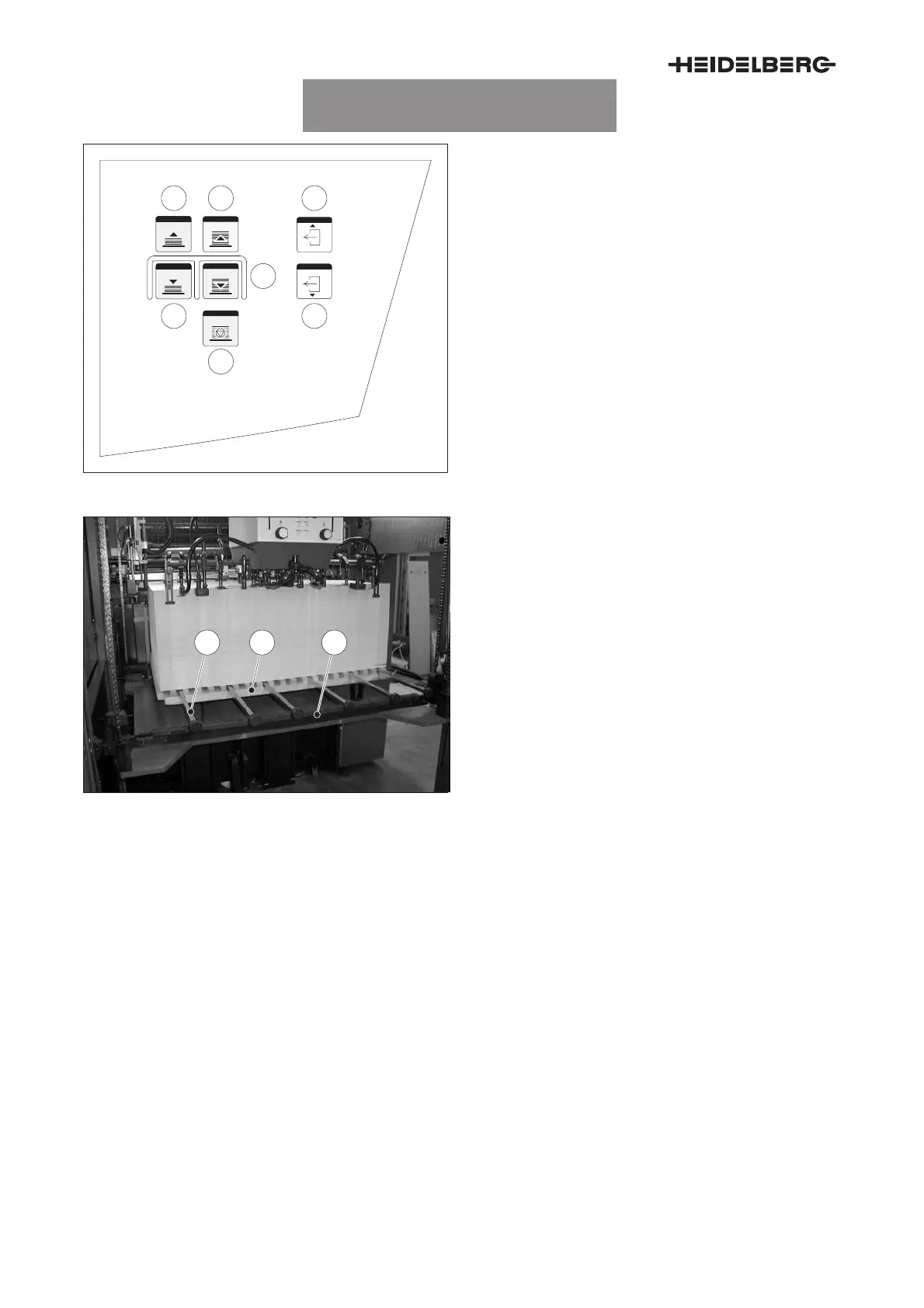

Fig. 4 Pile control control panel
1 2 3
Fig. 5 Inserting the supporting members
Method of operation
1. Use the Heidelberg non-stop pallets (Fig. 5/2)
with recesses for the members.
2. Lower the auxiliary pile with the
Auxiliary pile
down
button (Fig. 4/2) until the retainer for the
non-stop bar on D.S. and O.S. can easily be
reached.
3. Hook the non-stop bar (Fig. 5/3), with the guide
rail upwards, to the retainer on D.S. and O.S.
(Fig. 5/1). The non-stop bar must lock home on
D.S. and O.S.
4. Press the
Auxiliary pile down button (Fig. 4/2).
The non-stop bar automatically goes down to
the level of the pile support plate (Fig. 5), or to
the lowest position - the lowest point of the
white scale area (Fig. 5/?).
5. Push the supporting members (Fig. 5/1), with
the chamfer upwards, fully home into the recess
of the pallet.
6. Press the
Auxiliary pile up button (Fig. 4/1) after
you have inserted all supporting members.
Move the auxiliary pile system under the sup-
porting members.
