GR SG9015892000000000 GR SG9015797000000000
Preset Plus Feeder
confidential
C.1.7
1
2

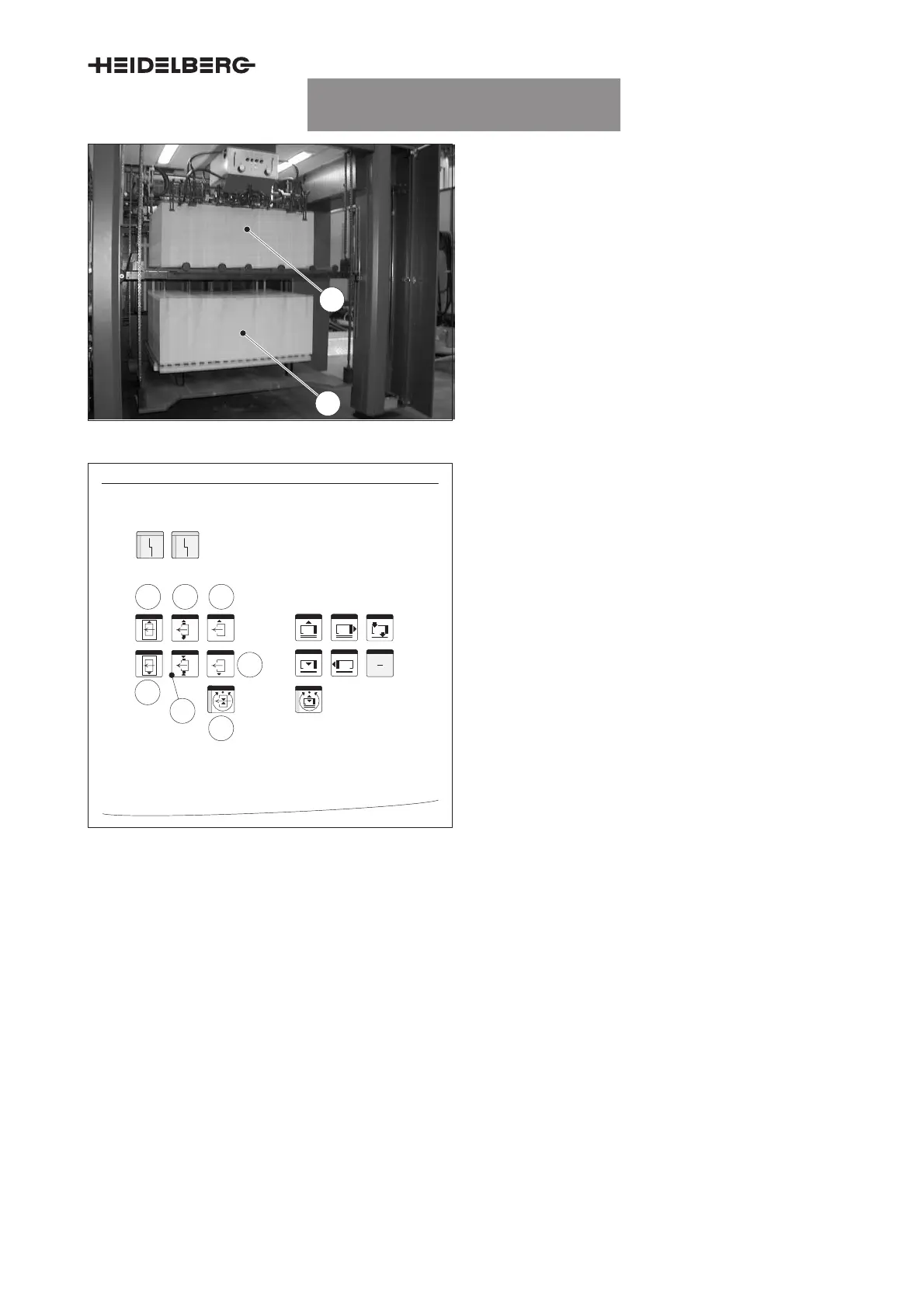

Fig. 6
5
6
7
23
4
1
Fig. 7 Feeder control panel
A sensor in the area of the front non-stop bar senses
the supporting members. The control system auto-
matically switches over the pile transport to the auxil-
iary pile. The pile support plate with the empty pallet
moves downwards and stops 12 cm above ground.
7. Press the
Main pile down
button (Fig. 4/4).
The pile support plate
D stops briefly above the ground,
D aligns itself automatically in center posi-
tion,
D and continues its movement down to the
ground.
8. Move the empty pallet out of the feeder.
9. Move the new pallet onto the pile support plate.
Center the pallet when you insert it.
10. Move the pile (Fig. 6/1) upwards until it is
approximately 10 cm below the auxiliary pile
(Fig. 6/2).
11. Use the
Align pile
buttons (Fig. 7/3 and 6) to
align the main pile laterally to the auxiliary pile.
12. Press the
Main pile up
button (Fig. 4/3).
The lifting speed is reduced automatically when the
main pile approaches the auxiliary pile. The new
main pile moves underneath the supporting mem-
bers of the auxiliary pile at reduced speed. The pile
transport now switches over automatically from the
auxiliary pile to the new main pile. The auxiliary pile
drive automatically moves downwards.
13. Starting from the inside, pull out the supporting
members. Next, pull out the two middle support-
ing members (first press them apart, then pull
them out slowly).
