9.2 Adjusting to different printing materials
1
2

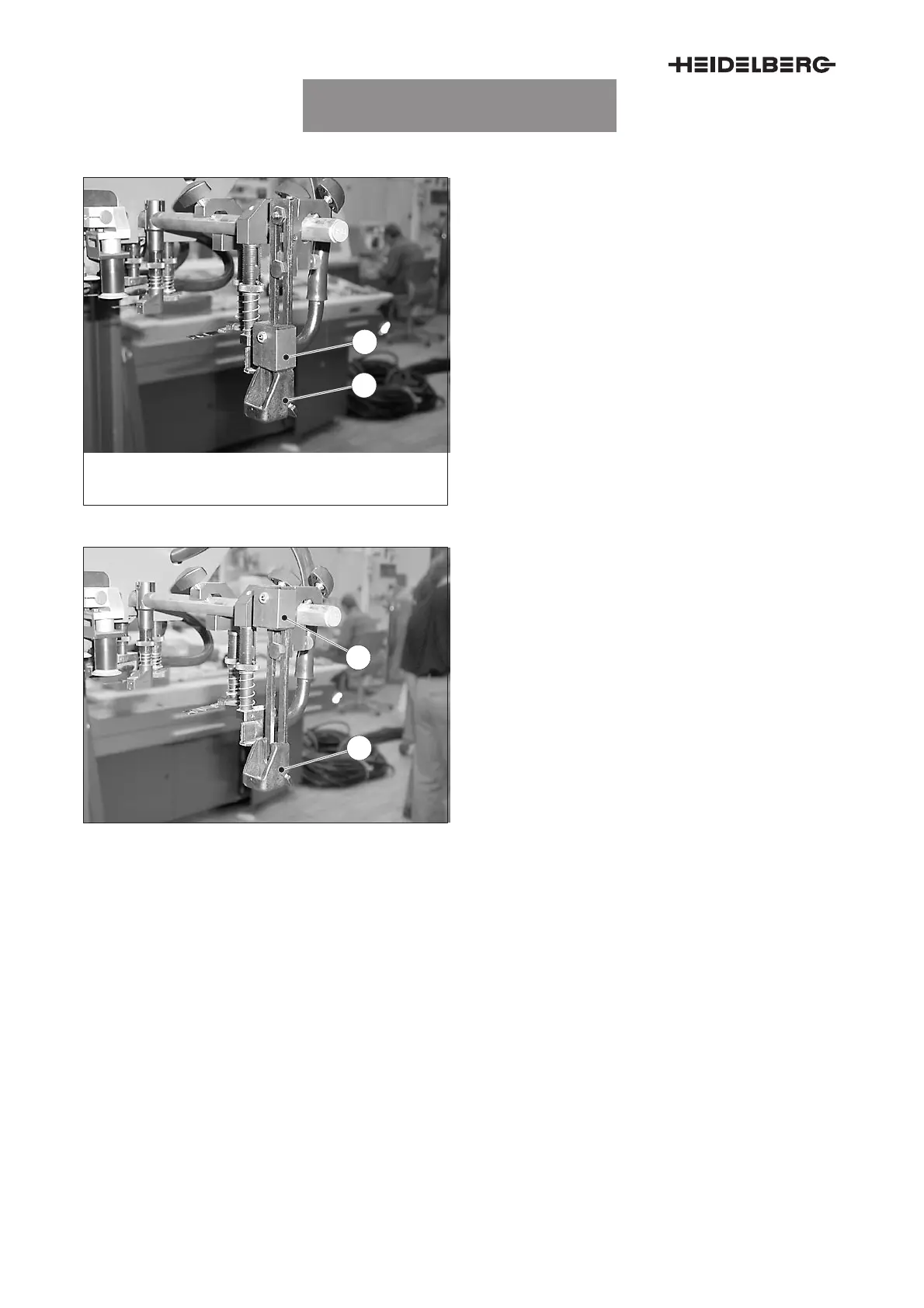

Fig. 38 Pile stop in normal position
Normal position
In normal position, steel weight (Fig. 39/1) and plas-
tic weight (Fig. 39/2) of the pile stop rest on the pile
with their dead weight. This setting is suitable for
heavy papers and cardboard.
1
2
Fig. 39 Pile stop without steel weight
Setting for thin printing materials
In this position, merely the plastic weight (Fig. 39/2)
rests on the pile. The steel weight is locked in its up-
per position.
1. Push the steel weight (Fig. 39/1) up and press it
– against the resistance of the thrust piece into
the upper park position.
