11.3 Manual adjustment of the lateral sheet separation blowers
Note
The lateral sheet separation blowers
shall separate the upper sheets.
Adjusting the height
1. Adjust the height of the corner blower
(Fig. 42/4) with the knurled nut (Fig. 42/5).
2. Adjust the height of the diagonal blower bar
(Fig. 42/3) with the knurled nut (Fig. 42/2).
Adjusting the distance
You can change the distance between the diagonal
blower bar and the corner blower. The position of the
corner blower cannot be changed.
3. Open the wing screw (Fig. 42/1) on the diago-
nal blower bar.
4. Adjust the diagonal blower bar (Fig. 42/3) to the
sheet format.
5. Close the wing screw (Fig. 42/1) on the diago-
nal blower bar.
11.4 Setting the blast air volume
2 4
1 3 5
6

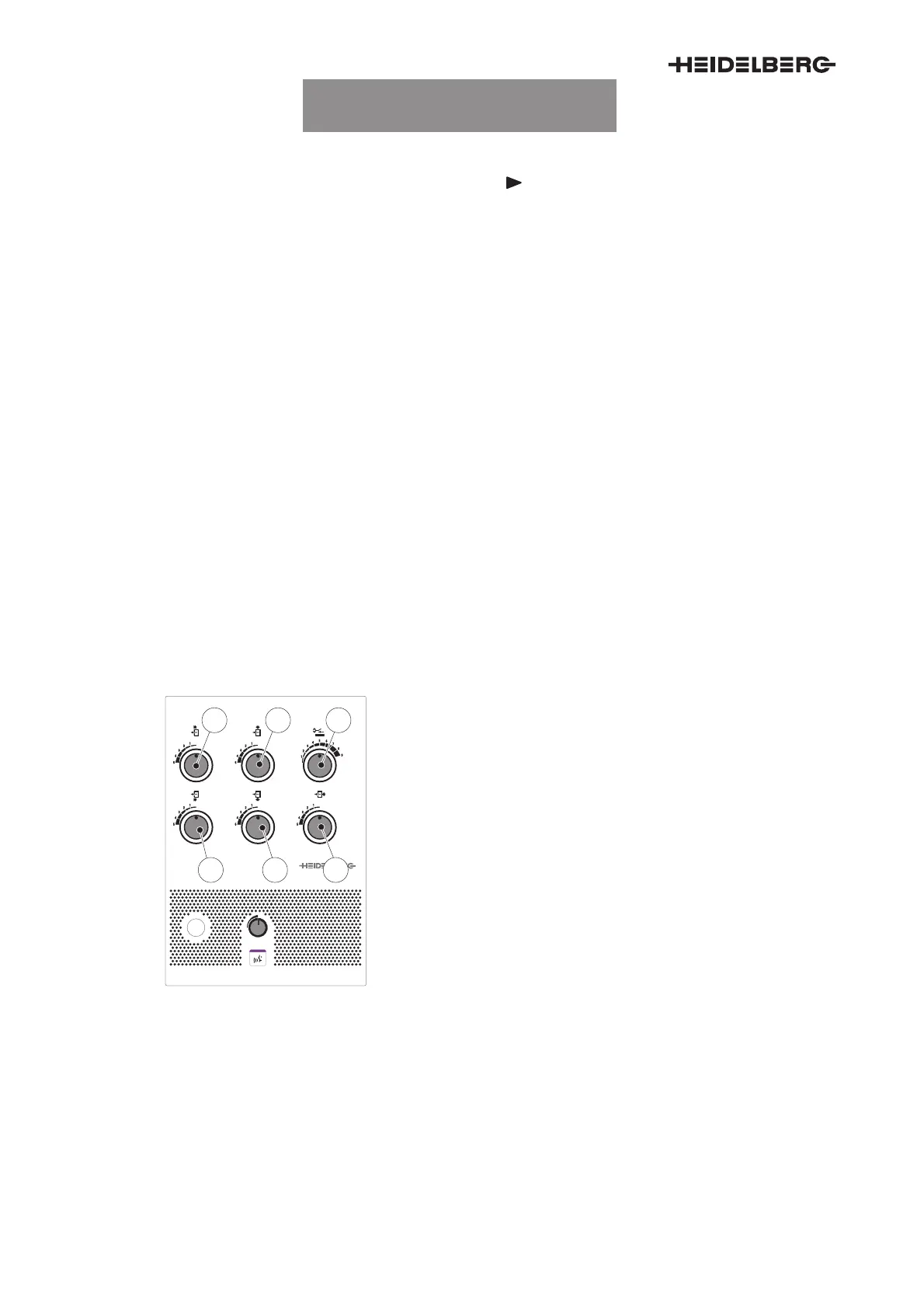

Fig. 43 Feeder air control control panel
The blast air volume for the lateral sheet separation
blowers can be adjusted via the feeder control panel
(Fig. 43).
1. Use the controllers (Fig. 43/1 ... 6) to adjust the
blast air volume to the currently used printing
material.
1 Blast air volume corner blowers D.S.
2 Blast air volume corner blowers O.S.
3 Blast air volume diagonal blower bars D.S.
4 Blast air volume diagonal blower bars O.S.
5 Height adjustment guide plate
6 Pre-separation air suction head
