HEIDELBERG Speedmaster CD 102 - Page 79

GR SG9015879000000000 GR SG9015878000000000
Preset Plus Feeder
confidential
C.1.41
1
2

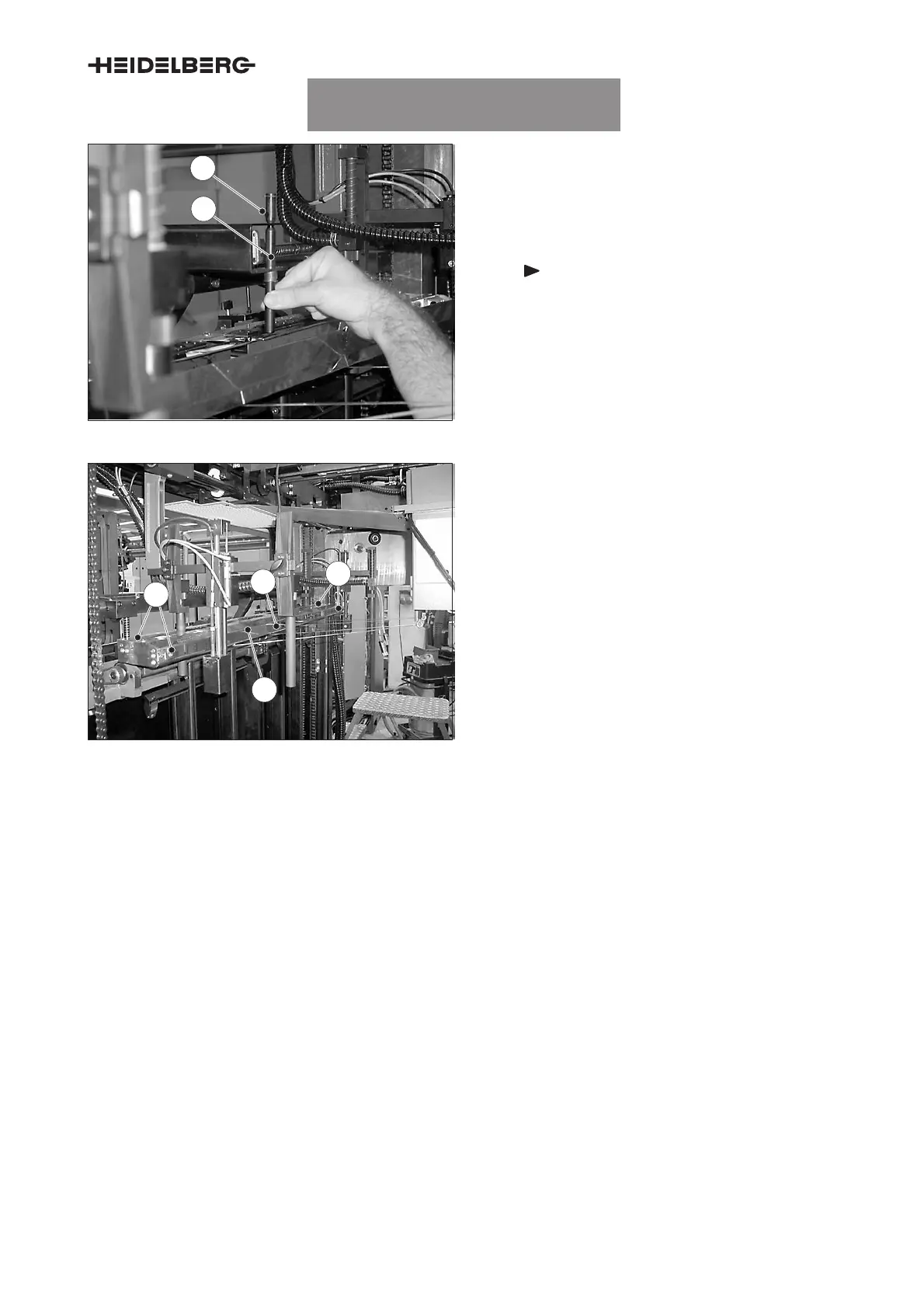

Fig. 51
1
2
1
1
Fig. 52
15. Insert the cover plate (Fig. 52/2) and tighten the
five screws (Fig. 52/1) on the cover plate.
16. Remove the locking device from the borehole
on the actuating bar (Fig. 51/2).
Result
The actuating bar leads into the bore-
hole on the cover plate.
