Preset Plus Feeder
confidential
C.1.40

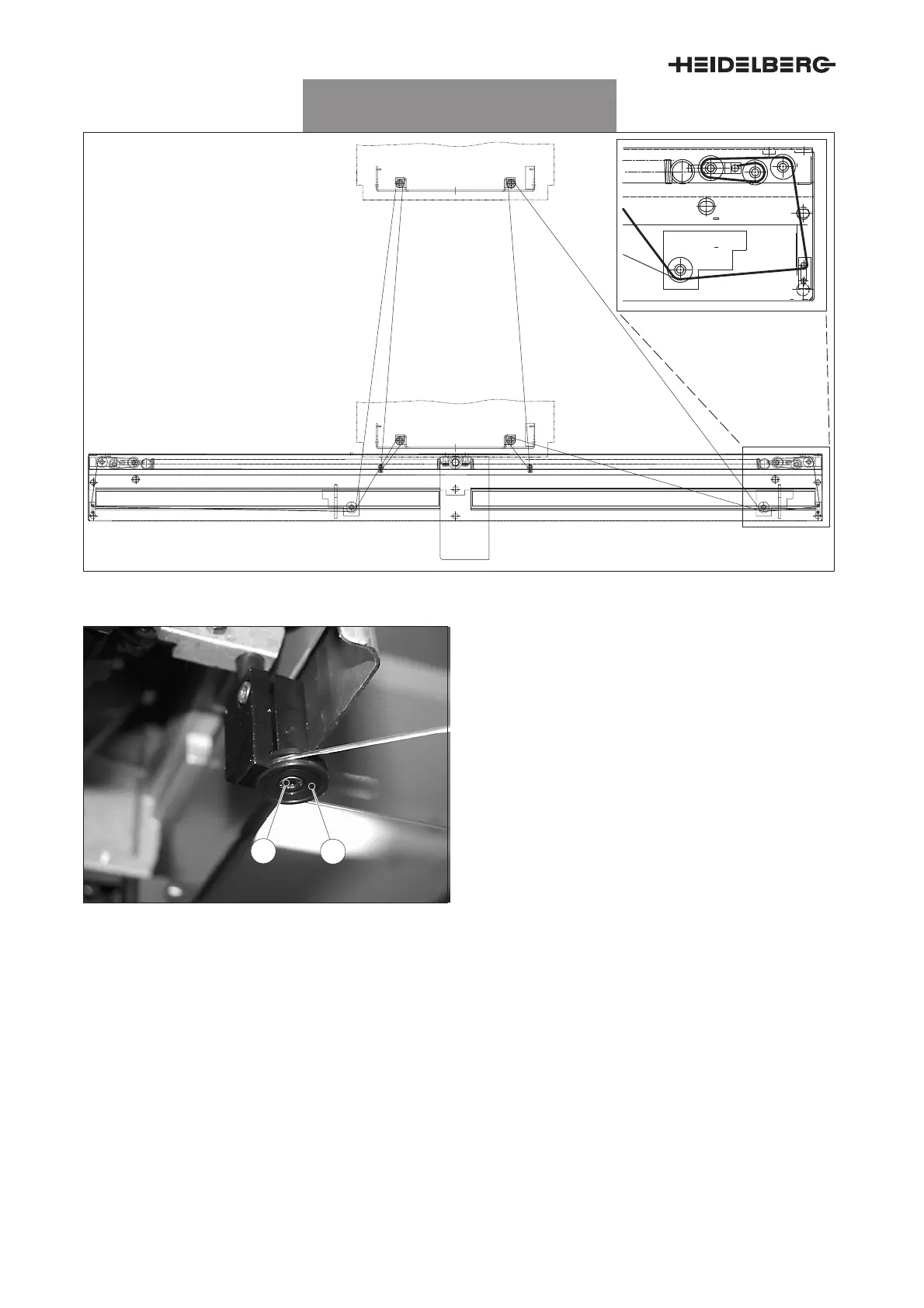

Fig. 49 Ropeway diagram
1
2
Fig. 50 Guide roll on the suction head
9. Hook the ear of the new rope to the rope pulley
(Fig. 48/4). Thread the pin (Fig. 48/3) through
the rope pulley and through the ear on the rope.
10. Insert the spring lock into the groove on the pin.
11. Hook in the spring and place the spring into the
plate guide.
12. Thread the rope through the guide pulleys (Fig.
49). Use the intact rope guide to orientate your-
self.
13. Hook the second rope end into the guide plate.
14. Tighten the rope - place the rope onto the guide
roll (Fig. 50/2) and tighten the screw (Fig. 50/1)
on the suction head.
