HEIDELBERG Speedmaster CD 102 - Page 77

GR SG9015882000000000 GR SG9015880000000000
Preset Plus Feeder
confidential
C.1.39
1

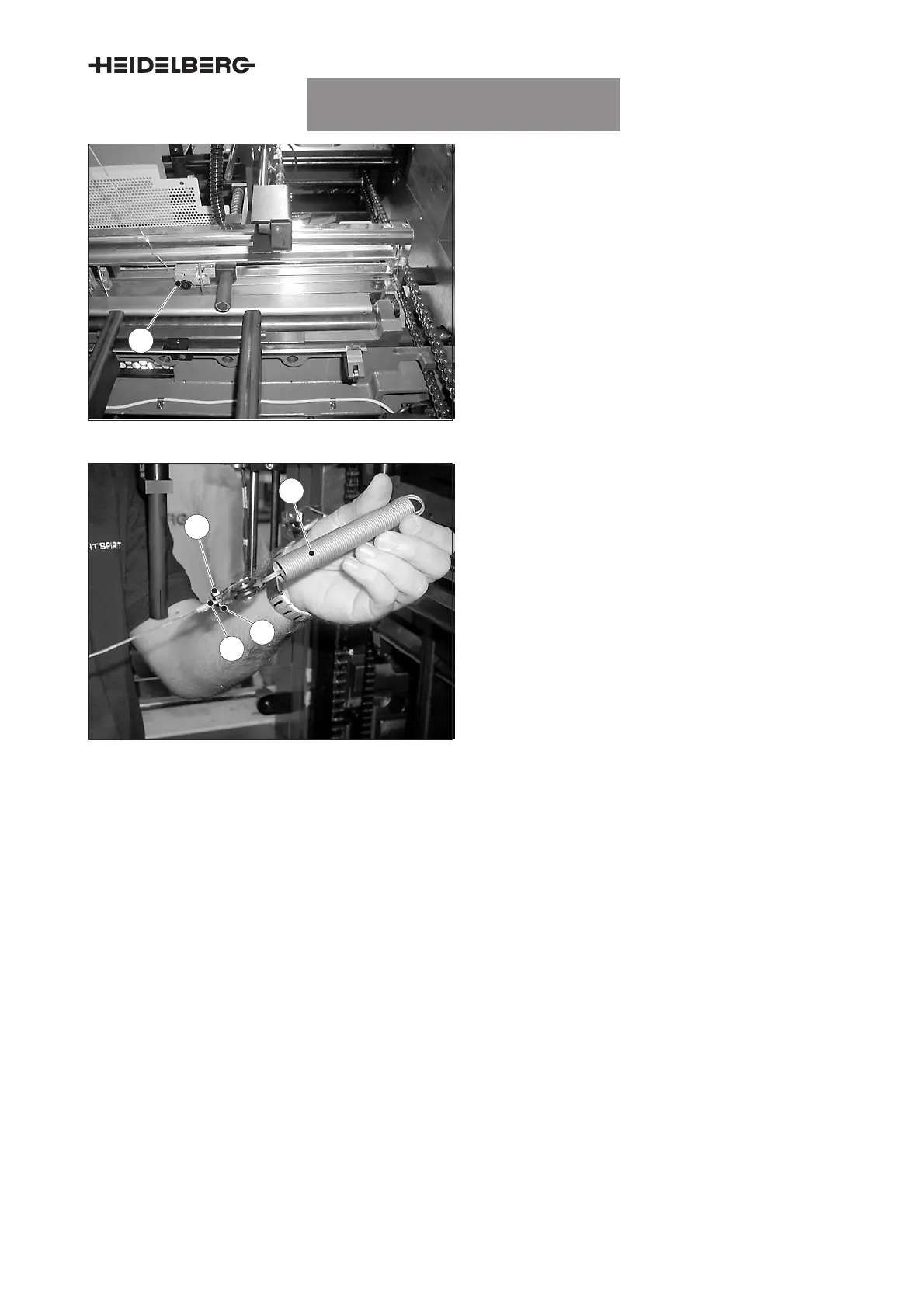

Fig. 47
2
1
4
3
Fig. 48
6. Detach the rope next to the lateral sheet sepa-
ration blower (Fig. 47/1).
7. Remove the spring from the guide plate and
detach the spring (Fig. 48/1).
8. Remove the spring lock (Fig. 48/2) on the pin
(Fig. 48/3) and remove the old rope.
