HEIDELBERG Speedmaster CD 102 - Page 76

GR SG9015877000000000 GR SG9015878000000000 GR SG9015879000000000
Preset Plus Feeder
confidential
C.1.38
2 4
1 3 5
6

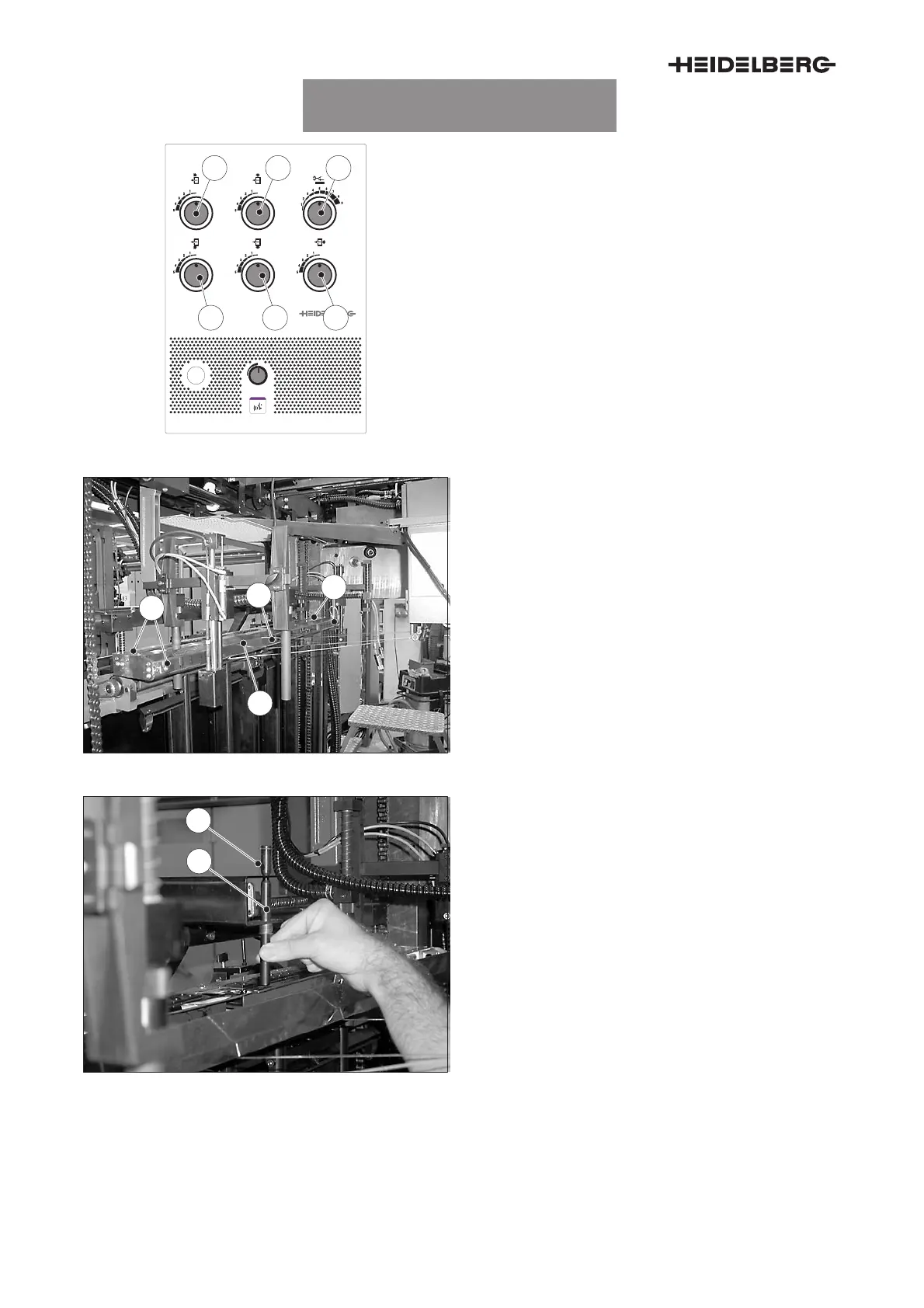

Fig. 44 Feeder air control control panel
1
2
1
1
Fig. 45 Screws on the cover plate
1
2
Fig. 46 Actuating bar
1. Slacken the rope - loosen the screw (Fig. 50/1)
on the suction head and remove the rope from
the guide roll (Fig. 50/2).
2. Using the control knob Fig. 44/5), move the
guide plate down.
3. Loosen the five screws (Fig. 45/1) on the cover
plate (Fig. 45/2).
4. Raise the actuating bar of the limit switch
(Fig. 46/1) and push, for example, an Allen key
into the borehole (Fig. 46/2).
The actuating bar remains locked in its upper
position.
5. Remove the cover plate from the feeder.
Store the cover plate at a protected place.
