Preset Plus Feeder
confidential
C.1.48
14 Forwarding rollers
14.1 Adjusting to sheet format
1
2

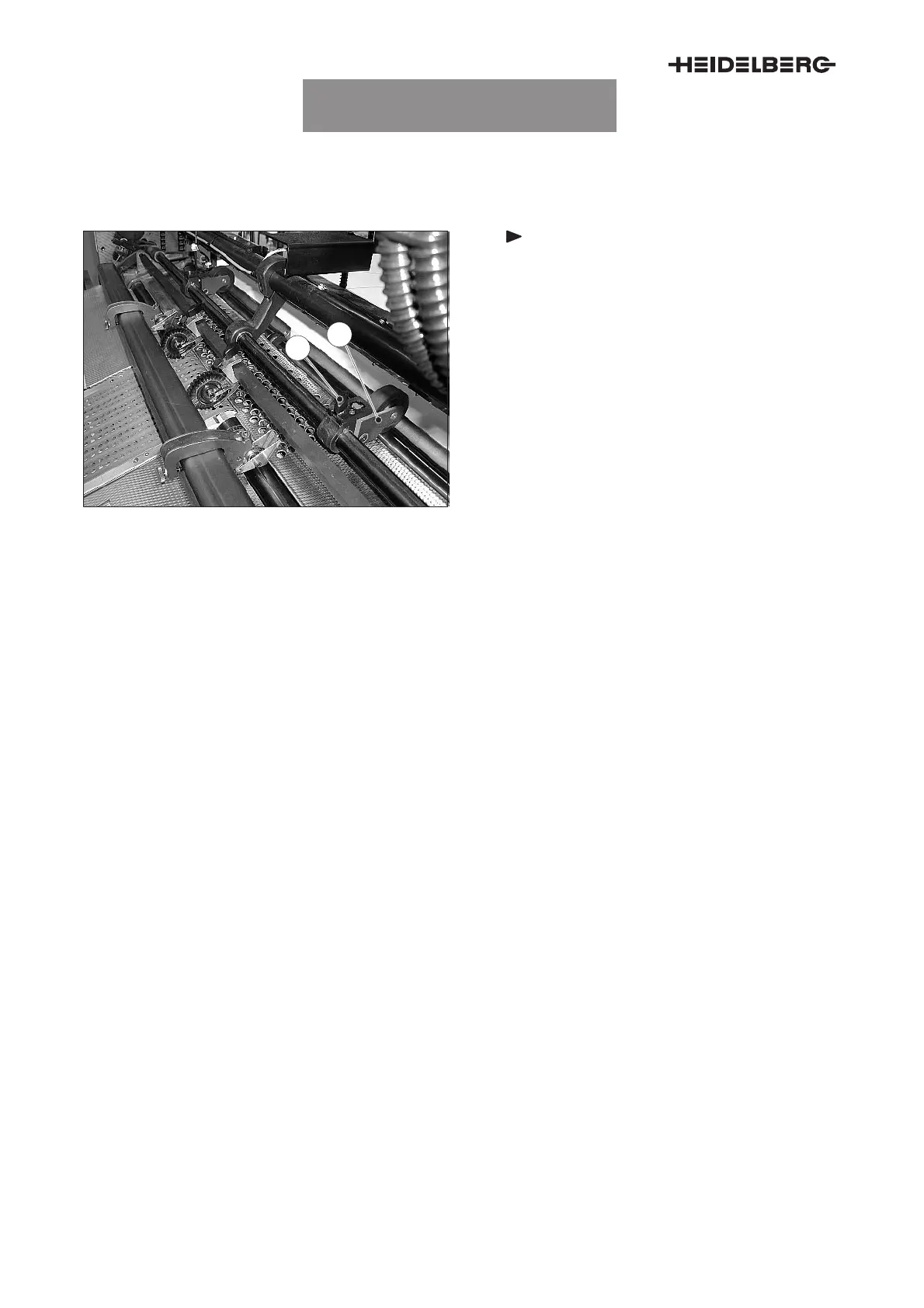

Fig. 60 Forwarding roller
Note
Clear the feed table before you start
positioning the forwarding rollers. Due to
the bundle check, there can be startup
problems when you move the forwarding
rollers on the sheets.
1. Open the tommy bar screw (Fig. 60/1).
2. Move the forwarding roller (Fig. 60/2) to the re-
quired position.
Recommended adjustment:
Set the distance between the forwarding rollers
to half the sheet width.
3. Tighten the tommy bar screw (Fig. 60/1).
