Operating instructions • M-BOSS Compact • 06-2020 • v02 • 544-12020
Operation
16

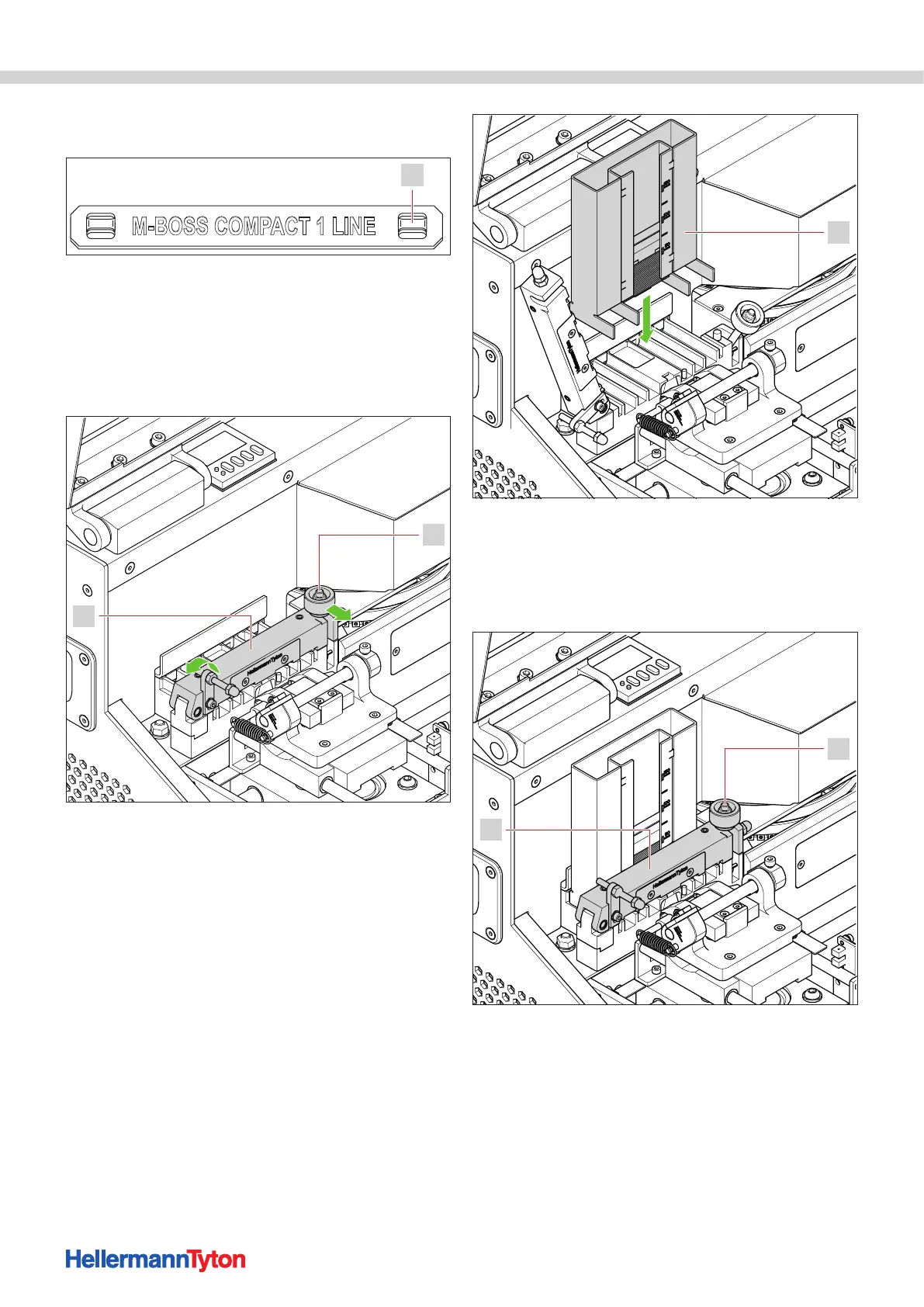

2 Insert the markers into the magazine with the fixing strap
to the top.
1
Insert the markers.
1 Fixing strap
3 Insert the weight.
4 Loosen the knurled nut and swivel the locking device
away.
5 Swivel the bridge upwards.
1
2
Swivel the bridge upwards.
1 Knurled nut
2 Bridge
6 Insert the magazine and push it up against the rear stop.
1
Swivel the bridge downwards.
1 Magazine
7 Swivel the bridge back down.
8 Swivel the locking device back and tighten the knurled
nut by hand.
1
2
Close the folding cover.
1 Knurled nut
2 Bridge
9 Close the folding cover.
; The magazine has been filled and inserted.
