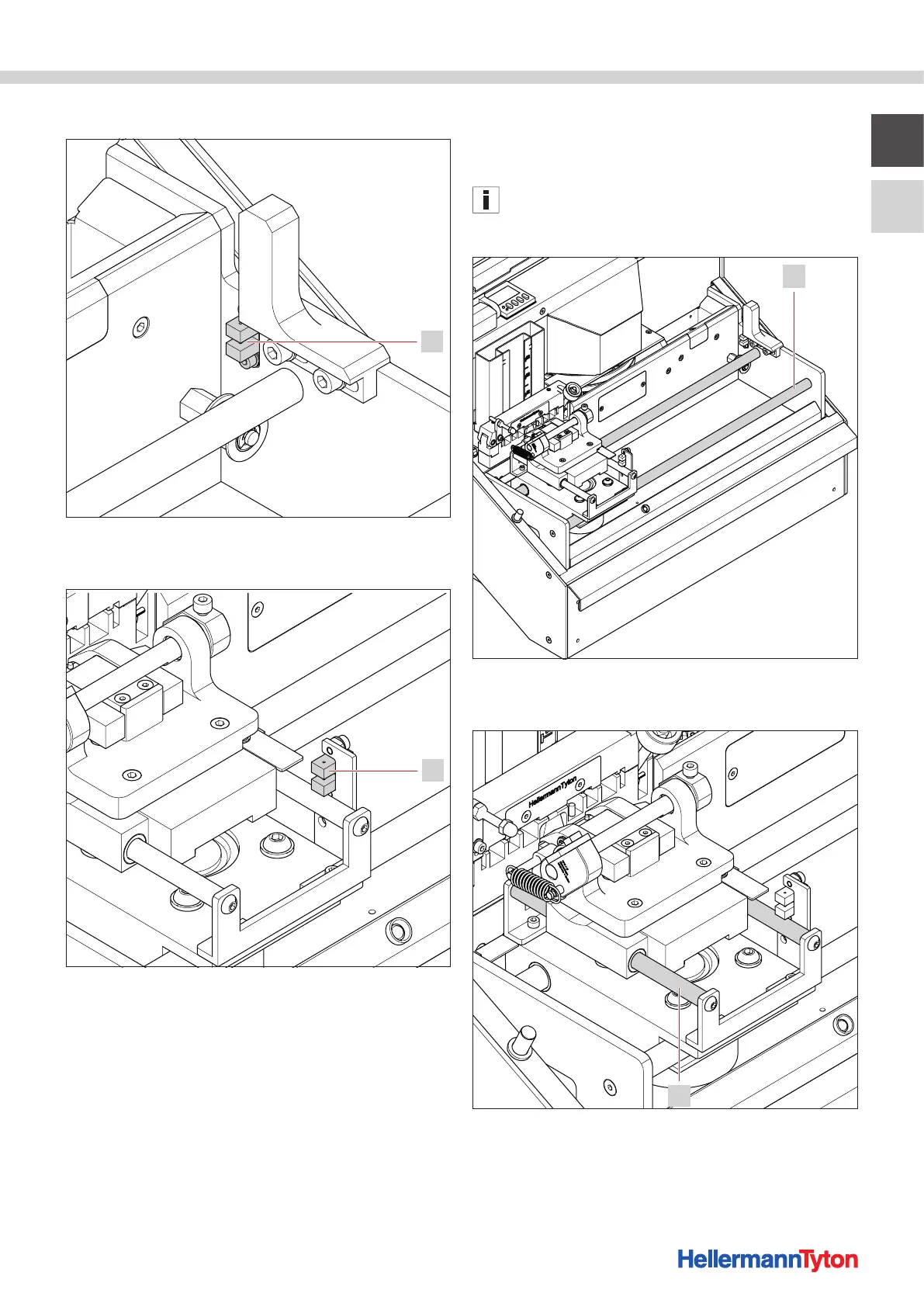

4 Clean the X-End light barrier with a dry brush.
1
1 X-End light barrier
5 Clean the Y-Home light barrier with a dry brush.
1 Y-Home light barrier
6 Swivel the bridge back down.
7 Close the folding cover.
; The marker light sensor and light barriers are clean.
8.2.4 Cleaning and lubricating the guide rods
Proceed as follows:
1 Open the folding cover.
The X- and Y-carriages can be slowly moved by hand.
2 Clean the X-carriage guide rod with a lint-free cloth.
1 X-carriage guide rod
3 Clean the Y-carriage guide rod with a lint-free cloth.
1 Y-carriage guide rod
