Operating instructions • M-BOSS Compact • 06-2020 • v02 • 544-12020
Layout and function
7

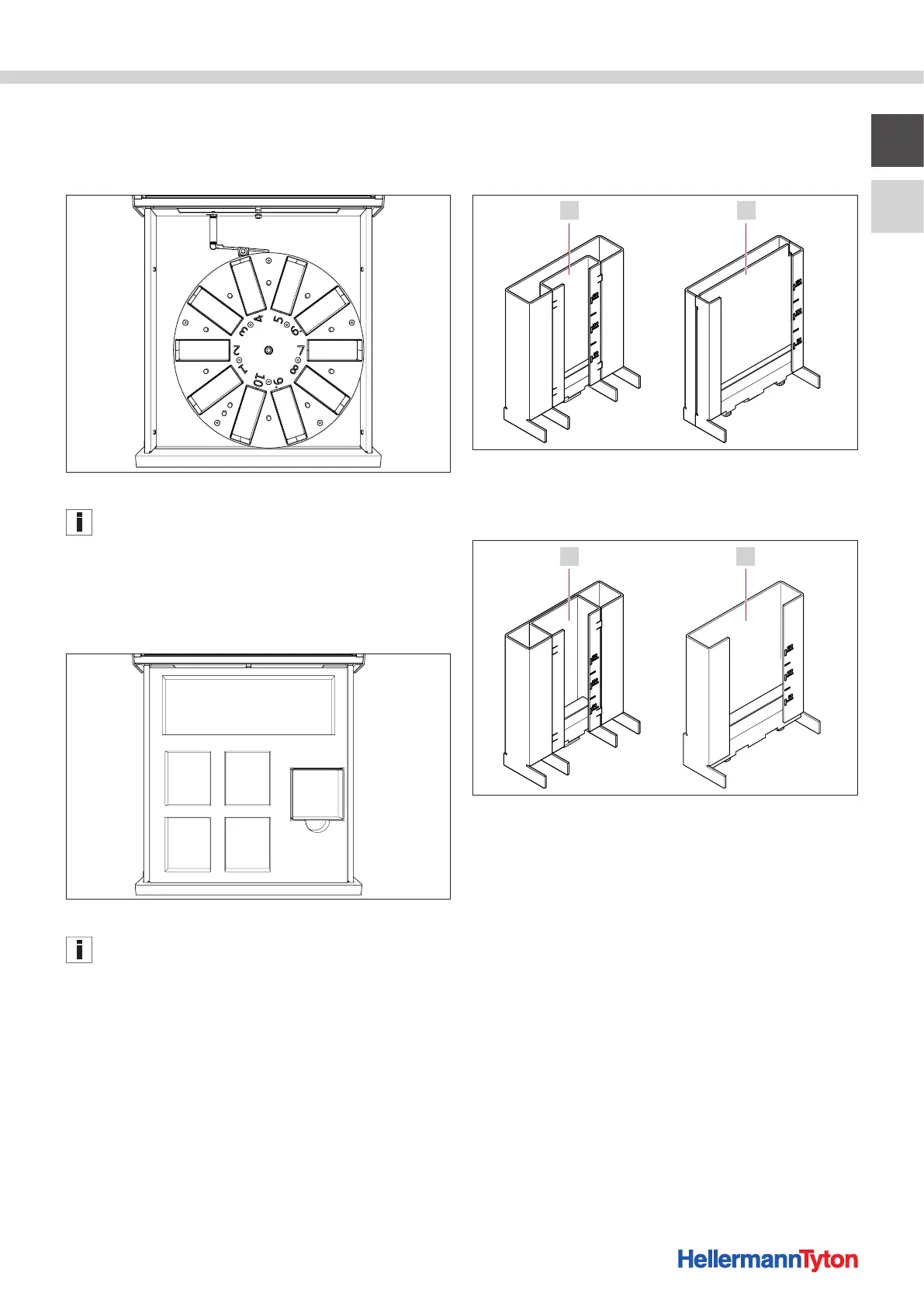

4.2 Organiser unit (Device article no. 544-21000)
The organiser unit is used to store embossed markers
and has ten numbered boxes. The number of markers
per box can be determined using a counter.
Organiser unit (Device article no.544-21000).
To prevent overfilling of the organiser unit, the number of
embossed markers may not exceed 40 pieces per box.
4.3 Drawer insert (Device article no.544-20000)
The drawer insert under the embossing mechanism
contains a box for holding embossed markers as well as
several boxes for holding magazines or materials that are
not being used.
Drawer insert (Device article no.544-20000).
To prevent overfilling of the drawer, the number of embossed
markers may not exceed 100 pieces.
4.4 Magazines
Each magazine has a maximum capacity of approx. 150
non-embossed stainless steel markers. The following
magazines are available:
1 2
Magazine 10 mm marker incl. weight.
1 Size 10 x 45 for marker MBML10X45
2 Size 10 x 90 for marker MBML10X90
1 2
Magazine 20 mm marker incl. weight.
1 Size 20 x 45 for marker MBML20X45
2 Size 20 x 90 for marker MBML20X90
4.5 Stainless steel marker (marker)
The M-BOSS stainless steel markers (simply called
"markers" in the following) are made of stainless steel of
type SS316 (SS316) and guarantee good legibility of the
characters even under the influence of dust, dirt, grease
and oil. The markers are suitable for operating tempera-
tures from -80°C to +538°C.
