Operating instructions • M-BOSS Compact • 06-2020 • v02 • 544-12020

Transport and storage

3 Transport and storage

For transport, all of the moving components of the

device must be secured. The device may only be trans-

ported in the supplied original packaging.

The device must be protected from humidity, direct

sunlight and extreme heat. The device may only be

stored in dry places that are not exposed to spray water.

4 Layout and function

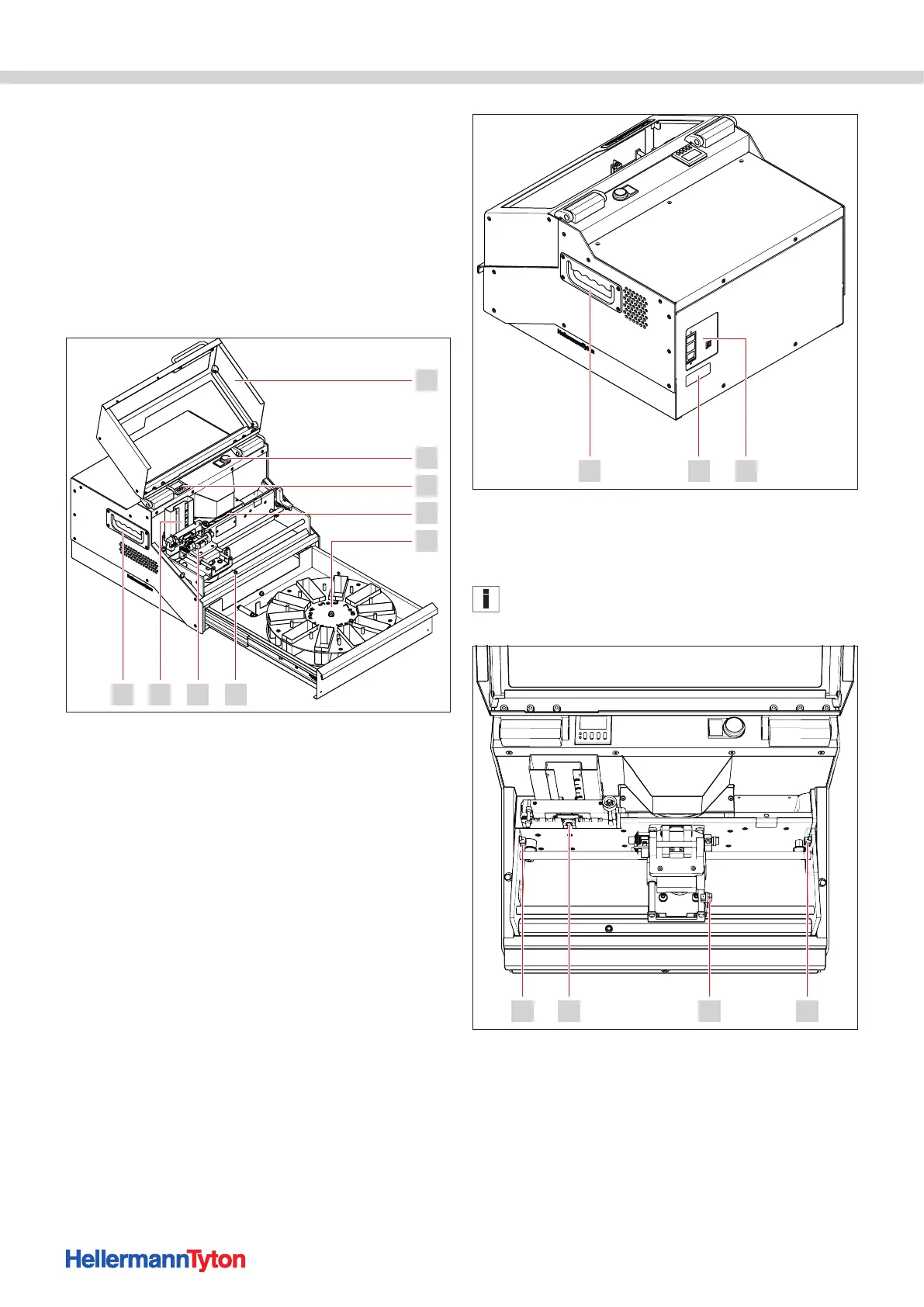

4.1 Layout

69 78

Front view of the device.

1 Folding cover

2 Reset button (Device article no. 544-21000)

3 Counter (Device article no. 544-21000)

4 Embossing drum

5 Organiser unit (Device article no. 544-21000)

6 Pilot lamp (Device article no. 544-21000)

7 Gripper

8 Magazine

9 Folding handle

23 1

Rear view of the device.

1 Connection plate

2 Rating plate

3 Folding handle

The upper housing of the device is suitable for setting up a

notebook for operating the device.

4 3 2 1

Overview of the sensors.

1 X-End

2 Y-Home

3 Marker light sensor

4 X-Home
