Ch. 11 A.C.GENERATOR/STARTING CLUTCH
11-4

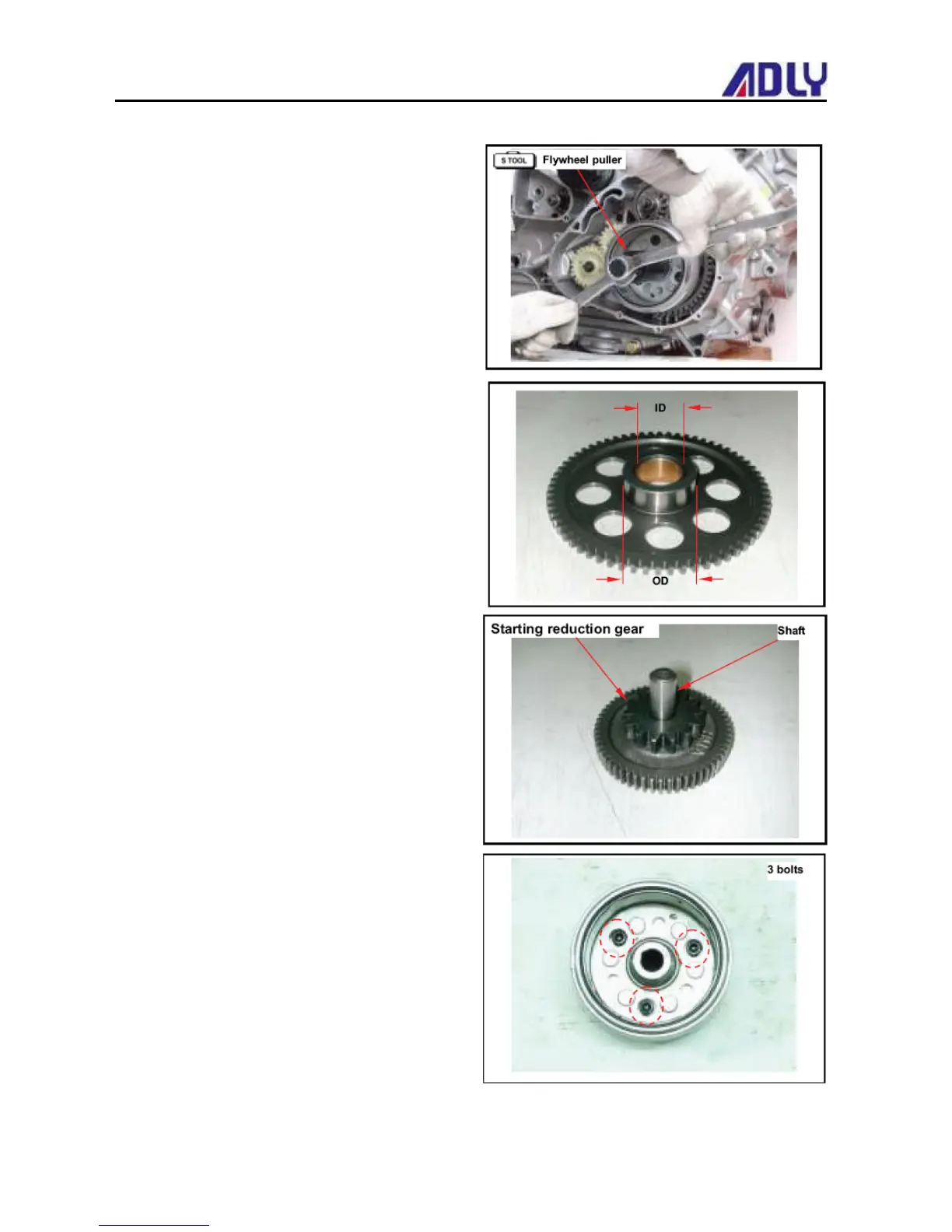

Flywheel Removal
Remove the A. C. Generator flywheel with
special tool.
Tool name: A. C. G. flywheel puller
Tool number: SYM-3110000-HMA
Starting Clutch Gear Inspection
Remove the starting clutch driven gear. Check
the gear for wear or damage.
Measure the ID and OD of the starting
clutch driven gear.
Service Limit: ID: 27.050 mm
OD: 45.183mm
Check the starting reduction gear and shaft for
wear or damage.
One Way Clutch Removal
Remove 3 bolts from the A. C. Generator flywheel.
To Next Page
