Ch. 17 REAR BRAKE / WHEEL / SUSPENSION
17-9

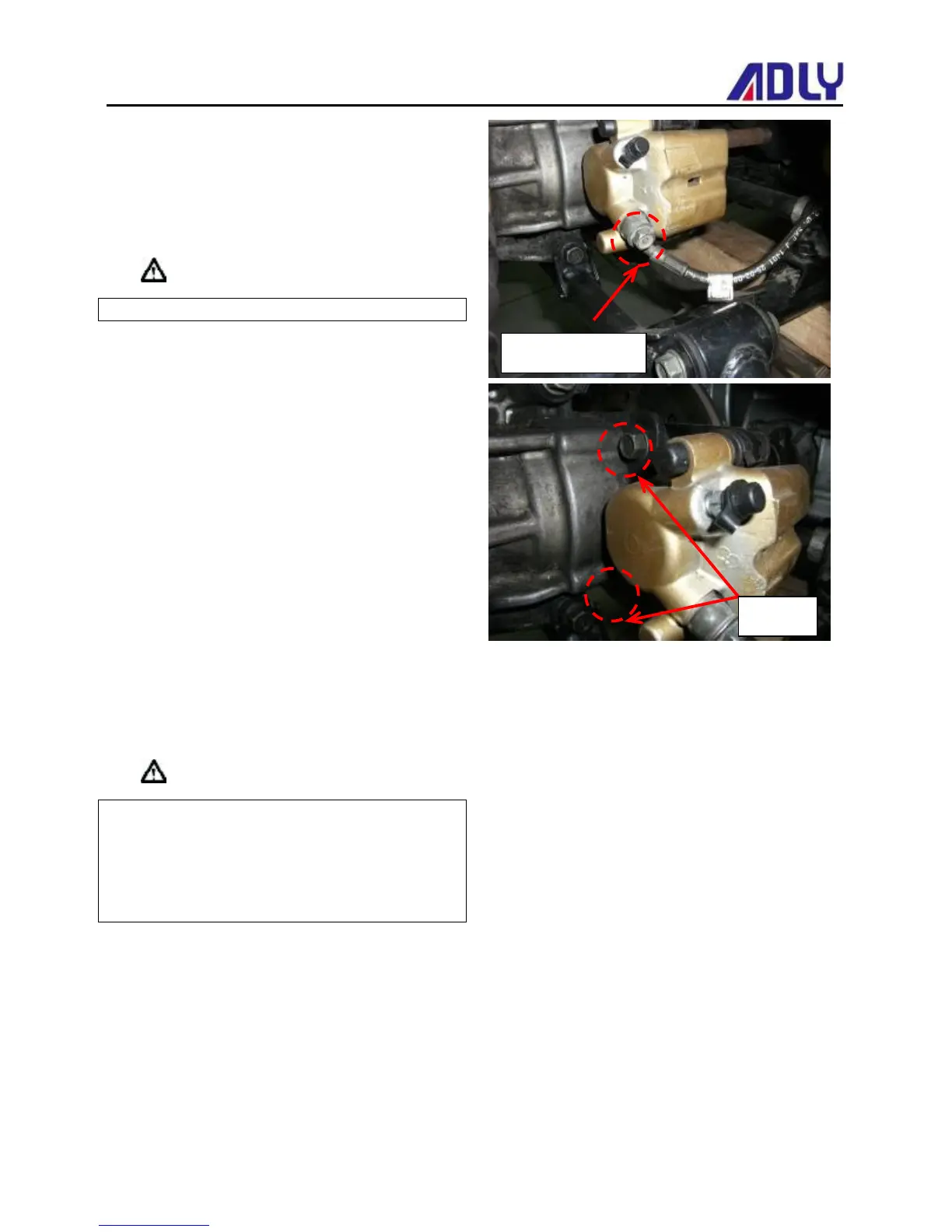

Removal
Place a container under the brake caliper, and
loosen the brake hose bolt and finally remove the
brake hose.
Cautions
Do not spill brake fluid on painted surfaces.
Remove two caliper bolts and the caliper.
Inspection
Make sure the brake linings condition. Replace
the linings if the brake linings wear limitation
groove close to the brake disk.
Installation
Install the brake caliper and tighten the attaching
bolts securely.
Torque for caliper bolts: 4.0 kg-m
Cautions
Use specified flange bolt only.
Longer bolt will impair the operation of brake
disk.
Use two seal washers and hose bolts to lock
the hose and brake caliper in place.
Torque for brake hose bolts: 2.3 kg-m
Refill up the brake fluid to the reservoir and make
necessary air bleeding.
Rear Cushion
Brake hose bolt
2-bolts
