Right footrest side – rear brake master
cylinder
Install the master cylinder bolts and the master
cylinder.
Install brake push rod to the brake pedal, and
install pin and R clip.
Cautions
To adjustment brake pedal, you must be
remove push rod pin first.
Loosen lock nut, and turn adjustment nut
and push rod bracket to adjust brake free
play.
Install brake hose and clamp.
Connect brake hoses with 2 new washers.
Tighten the brake hose bolt to the specified
torque.
Torque: 2.3 kg-m
Make sure the hose is installed correctly.
Install all wires, hoses, and components carefully
avoid twisting them together.
Add specified brake fluid and bleed the system.

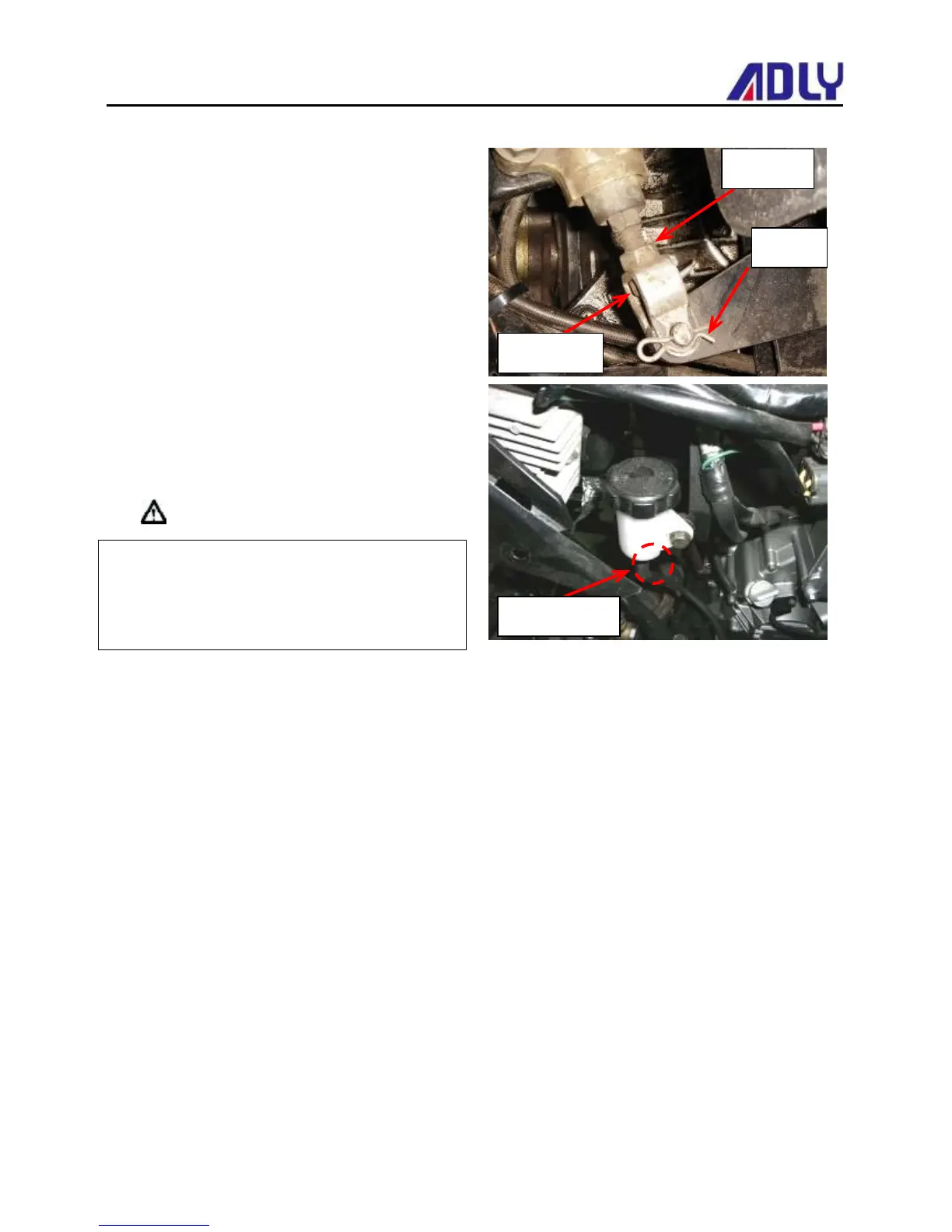

Lock nut
Adjust nut
R-clip
Hose Clamp
