Ch. 17 REAR BRAKE / WHEEL / SUSPENSION
17-13

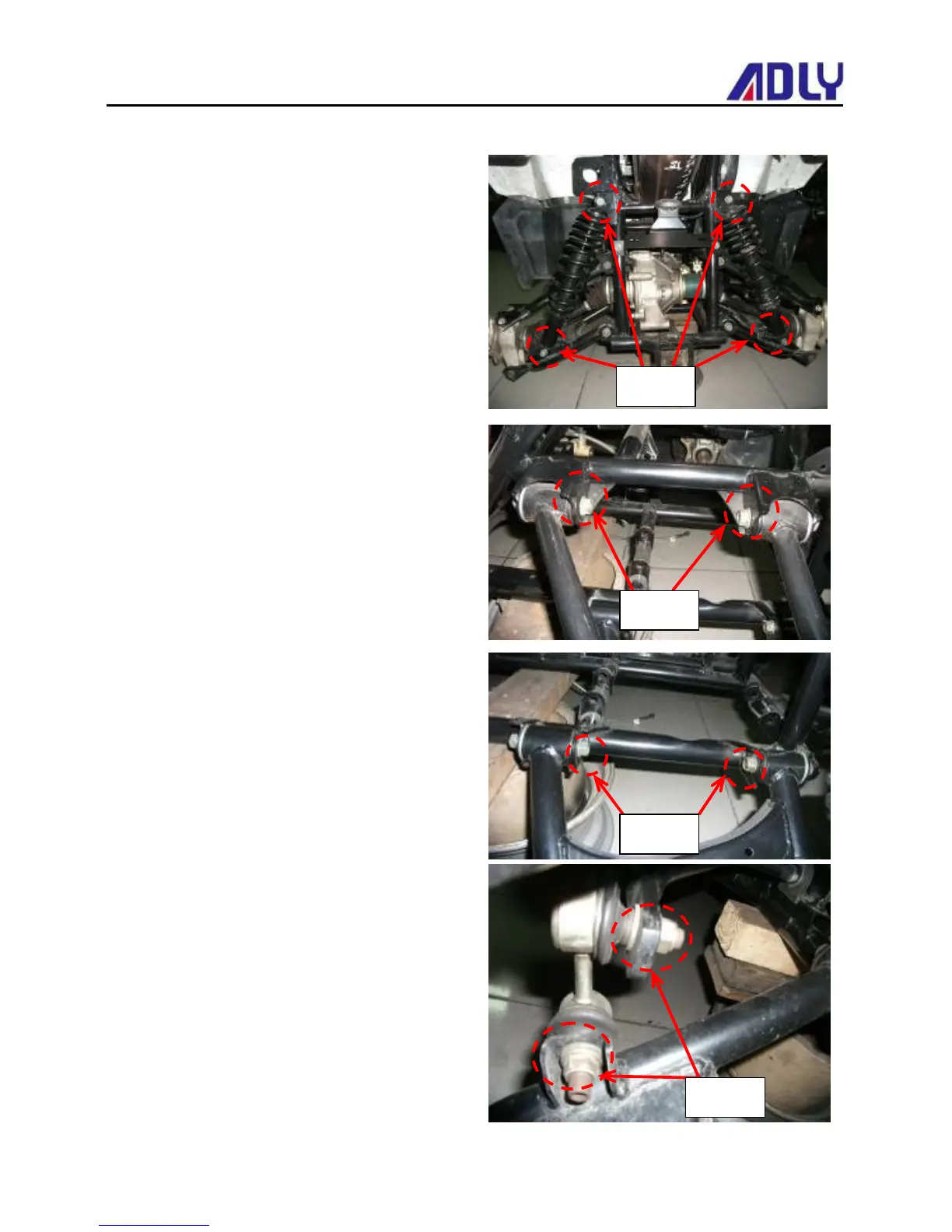

Brake Disk
Removal
Removal the rear wheel.
Removal the rear wheel knuckle.
Removal the rear wheel axle.
Removal the cushion 4 bolts.
Removal the rear arm upper 2 bolts.(R/L)
Installation
Install the rear arm upper and tighten the bolt.
Torque: 4.5 kg-m
Removal the rear arm lower 2 bolts.(R/L)
Installation
Install the rear arm lower and tighten the bolts.
Torque: 4.5 kg-m
Removal the stabilizer joint 2 nuts.(R/L)
Installation
Install the stabilizer joint and tighten the nuts.
Torque: 4.0 kg-m
4-bolts
2-bolts
2-bolts
2-Nuts
