Ch. 17 REAR BRAKE / WHEEL / SUSPENSION
17-15

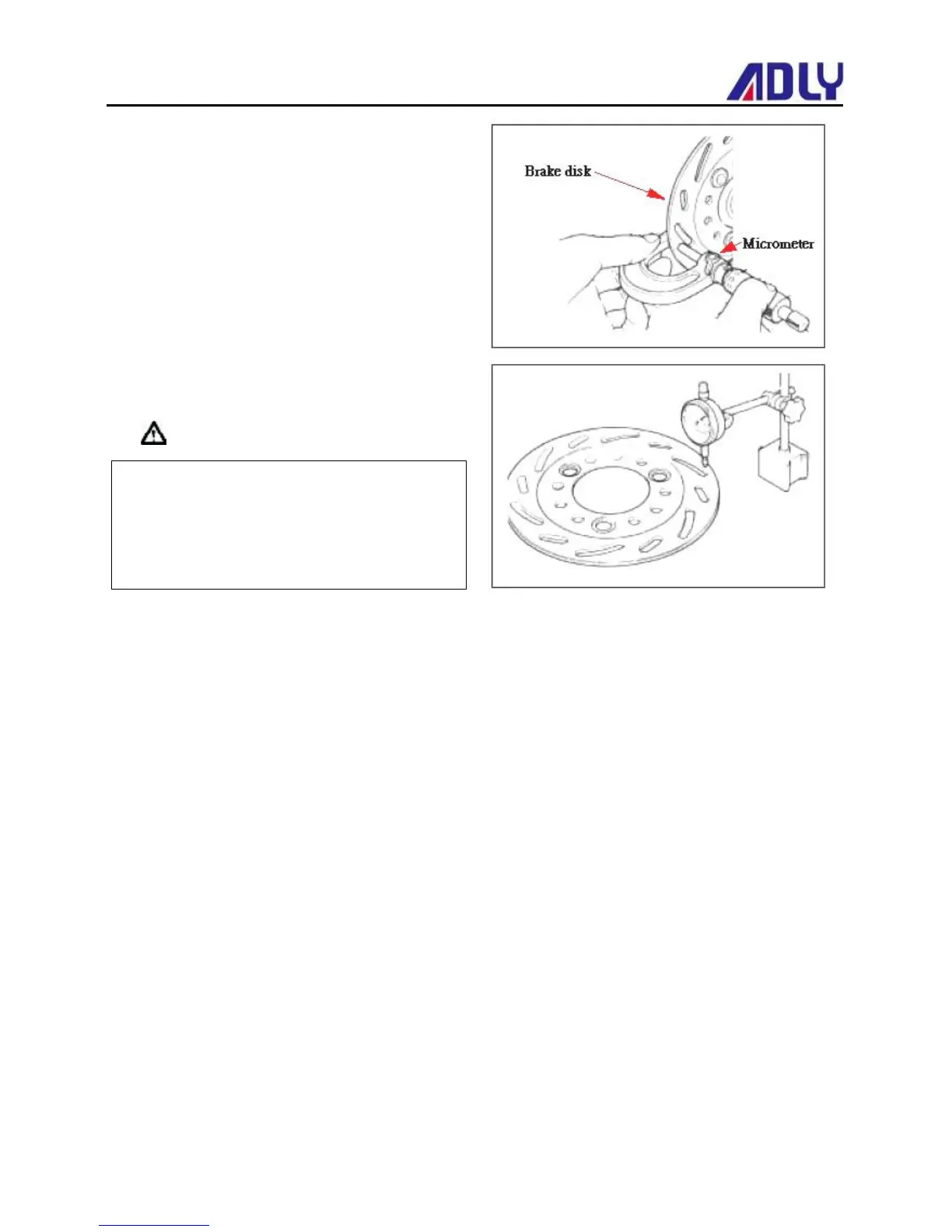

Inspection
Visually check the brake disk for wear or break.
Measure the thickness of the disk at several
places. Replace the disk if it has exceeded the
service limit.
Allowable limit: 4 mm
Remove the brake disk from rear differential.
Check the disk for deformation and bend.
Allowable limit: 0.30 mm
Cautions
The dirty brake lining or disk will reduce
the brake performance.
Brake lining includes the powder
ingredient, do not use the air-gun to be
clean, the operator should wear gloves,
use vacuum cleaner to clean it.
