Ch. 5 ENGINE REMOVAL
5-4

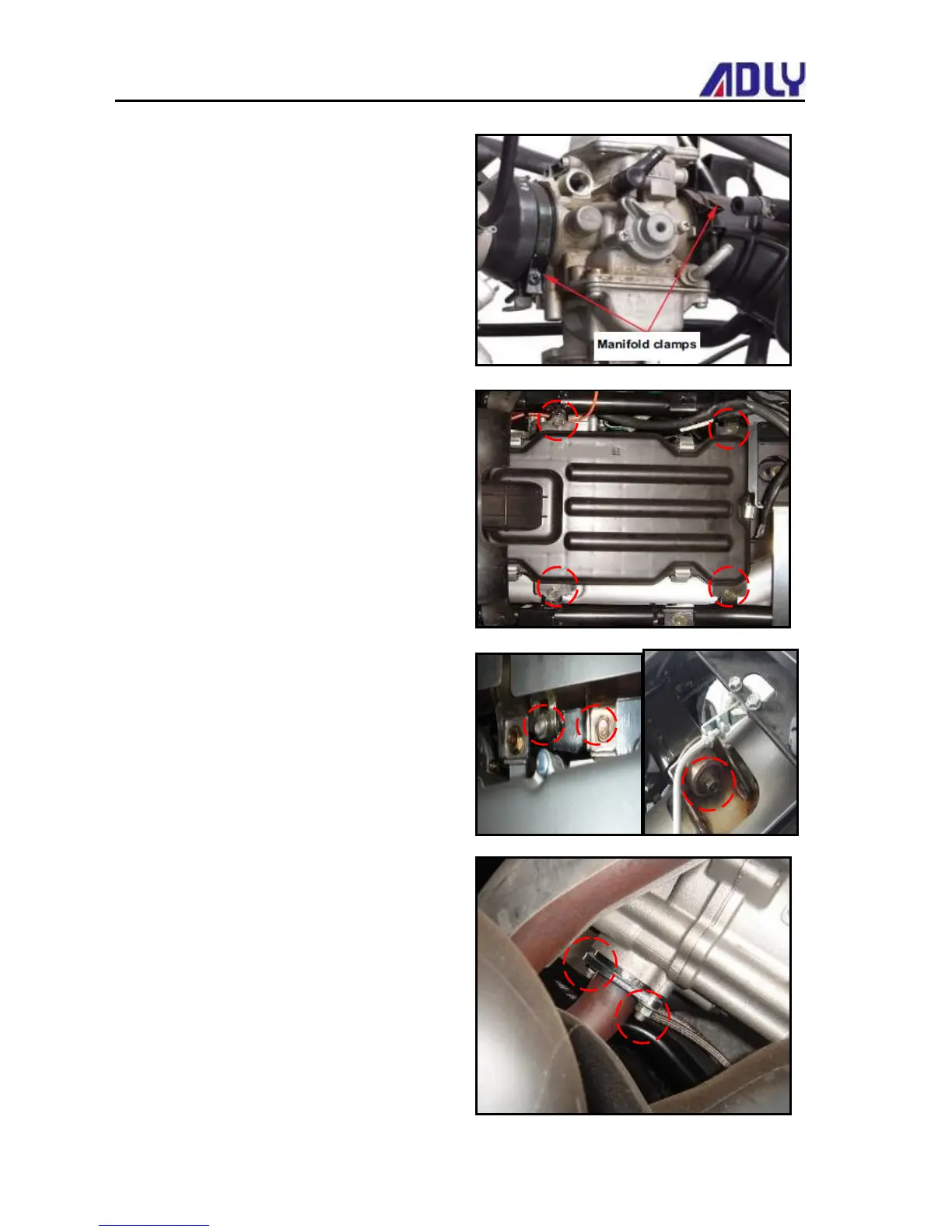

Remove 2 manifold clamps.
Remove the carburetor.
Remove 4 bolts.
Remove the air cleaner.
Remove 1 bolt under the seat and 1 bolt on
top of left CVT cover.
Loose the fix bolt for muffler joint which is
located on top of left CVT cover.
Remove the muffler.
Remove 2 nuts on the engine side and 1 bolt on
top of the CVT cover.
Remove the exhaust pipe.
