Ch. 5 ENGINE REMOVAL
5-5

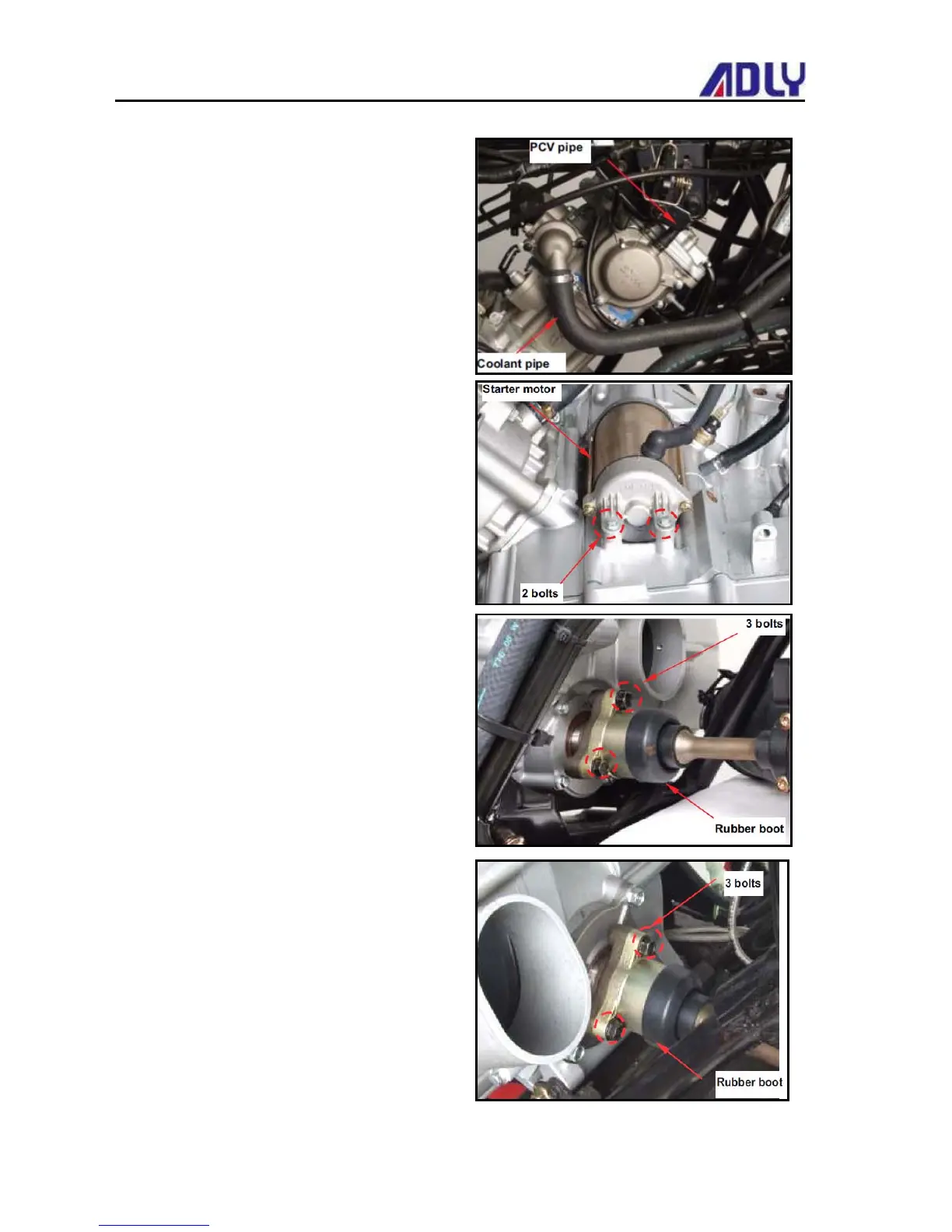

Remove the coolant drain bolt and drain out
coolant.
Remove the coolant inlet pipe from the water
pump cover and the outlet pipe from the
thermostat cover.
Remove the PCV pipe.
Remove 2 bolts.
Remove the starter motor.
Remove 3 bolts on the front propeller shaft
connector.
Remove the front propeller shaft.
Remove 3 bolts on the rear propeller shaft
connector.
Remove the rear propeller shaft.
Be careful not to do any damage to the rubber
boot.
To Next Page
